High Precision Column Moving Surface Grinder

Product Description

Product Description

FSG-800/1000 Series Surface Grinding Machine Features
Double walled column structure, provide high rigid support. Adopt counterweight balance, make the spindle move stably, and reduce the load of the leadscrew, keep the accuracy for a long time.
Independent, large capacity hydraulic tank, standard equiped with air cooling , isolate heat and vibroseis, to provide excellent power for precision grinding.
Flat-V guideway are adopt on vertical motion, and coat with TURCITE-B belt, to get low fricion coefficien.
Flat-V guideway are adopt on longitudinal and cross way to get good guidance quality, and coat with TURCITE-B belt, precision handscraping to keep
AC servo motor drives on cross and vertical motion. MPG(electronic hand wheel) replaces the tradition mechanical hand wheel, which can realize higher accuracy and easy operation.
Adopt 7 inch LCD-TFT colorful touch screen, built in program of our engineer's genius designation to make the operation very simple and convenient for the opeator.
Adopt hydrostatic bearing for the spindle to get high rigidity ( high precision rolling bearing for export), together with 18.5KW or 22KW motor to provide strong power,apply to the heavy duty machining. Spindle rotation is supported by rigidity oil film, no wear, ensure the long-time precision and life.
Well designed machine bed is one high grade casting piece, which insure heavy duty cuting
strengthen ribs are set inside of the rear slide base, make sure great stability suport for spindle.
super great power spindle unit is most important to the machine. It is really an elaboration under well designed, and our ultimate goal is to balance high rigidity and great accuracy.
the machine bed and rear slide bed are assembled to one piece, to supply super strong base for efficient working.

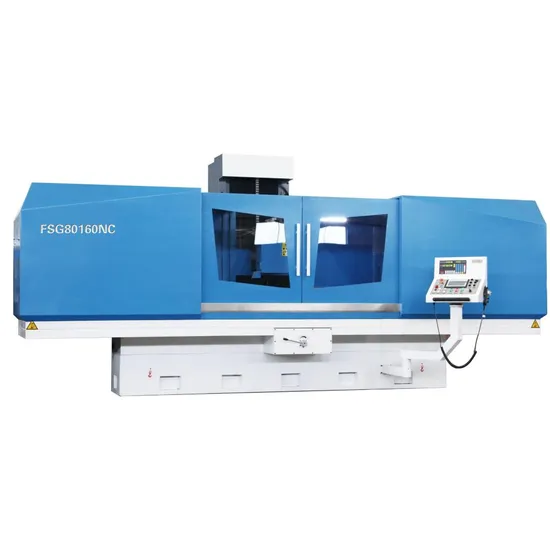

the photo shows includeing optional equipment.
Product Parameters
FSG-1000series grinder main parameter
three models to select: 1000x2200, 1000x3000, 1000x4000.

(Specifications)
ITEM /MODEL •Working area			FSG-100220ZNC	FSG-100300ZNC	FSG-100400ZNC
	Table size	mm	1000*2200	1000*3000	1000*4000
	Max. ground area	mm	1000*2200	1000*3000	1000*4000
	Max. gound height	mm		670(830/1000 optional)
	Magnetic chuck size(optional)	mm	1000*1000*2	1000*1000*3	1000*1000*4
	Max. loading capacityfindude chuck)	kg	4000	5000	5000
• Three axis motion
	Speed of table longitudinal move	m/min	5~25	5~25	5~25
	Cross Motion
	Intermittent feed rate	mm/t	1~50	1~50	1~50
	Rapid speed	mm/min	50~2000	50~2000	50~2000
	Feed of MPG	mm/div	0.005	0.005	0.005
	Vertical Motion
	Auto down feed rate	mm/t	0.005-0.05	0.005-0.05	0.005-0.05
.	Rapid down speed	mm/min	50-2000	50-2000	50-2000
	Feed of MPG	mm/div	0.005	0.005	0.005
• Grinding wheel
	Rotating speed	r/min	960 (50HZ)/1150(60HZ)(Optional variable speed)
	Grind wheel size	mm	500*100*203	500*100*203	500*100*203
	Grind wheel size for export	mm	500*100*305	500*100*305	500*100*305
• Device capacity
	Spindle motor power	kw	18.5/22	18.5/22	18.5/22
	Oil pump motor	kw	7.5	11	15
	Y/Z servo motor	kw	3	3	3
	Total rated power	KVA	45	51	57
•Dimensions and weight
	Floor space (L*W*H)	cm	720*520*250	870*520*250	1000*520*250
	Gross weight	kg	14000	15500	19500

standard accessories:
Operating manual, Working lamp, Balancing arbor, Splashing guard, Coolant tank, Wheel flange and extractor, Standard wheel, Wheel dresser stand, Y/Zaxis MPG, Leveling wedge, Wheel extractor, Magnetic chuck controller, HMI+PLC auto, groud controller
optional accessories:
Electrical magnetic chuck, Magnetic separator, Paper filter, Magnetic separator and Paper filter, Digital readout, Oil tank guard, Hydro drive parallel wheel dresser, Wheel flange and extractor, Balancing stand

---
