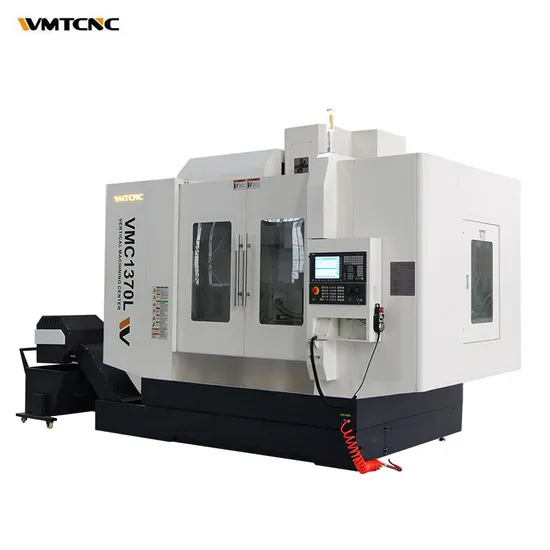

WMT 3 4 5 axis cnc milling machine VMC1370L cnc vertical machining center

Product Description

Product Description
2023 New 5 axis cnc machine VMC1370L cnc vertical machining center main features:
1. CNC high precision machining center VMC1370L is with Taiwan high speed spindle 8000rpm.
2. VMC1370L is with linear guideways on X/Y/Z axes.
3. The machine center is with closed protection and electric cabinet, safe and beautiful.
4. The machine is with round disc type tool magazine, tool change time is about 2s, and with Taiwan Hiwin ball screw.

Specification	VMC1370L
Worktable
Worktable size (L×W)	1400×700mm
T-slots size (N×W×D)	5-18x110mm
Travel
X/Y/Z axis travel	1300/700/700mm
Machining range
Distance from spindle center to column	750mm
Distance from spindle nose to worktable surface	110-810mm
Spindle
Spindle taper	BT40
Spindle power	11kw
Max. spindle speed	8000rpm
Feed
Max. feed speed	10m/min
Rapid feed speed (X/Y/Z)	24/24/20m/min
Ball screw (diameter+lead)
X/Y/Z axis ball screw	4512
Tool magazine
Tool magazine capacity	24T
Max. length of tool	300mm
Tool change time	1.5s
Positioning accuracy (National standard)
Positioning accuracy (X/Y/Z)	±0.008mm
Re-positioning accuracy(X/Y/Z)	±0.003mm
Machine dimension
L×W×H	3200×2540×2600mm
Machine weight
Max. loading of worktable	1000kg
Machine weight	8200kg

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
