Vertical Mixer Tmr Feeder Livestock Cattle Goat Tmr Feed Grinder and Mixer Price

Product Description

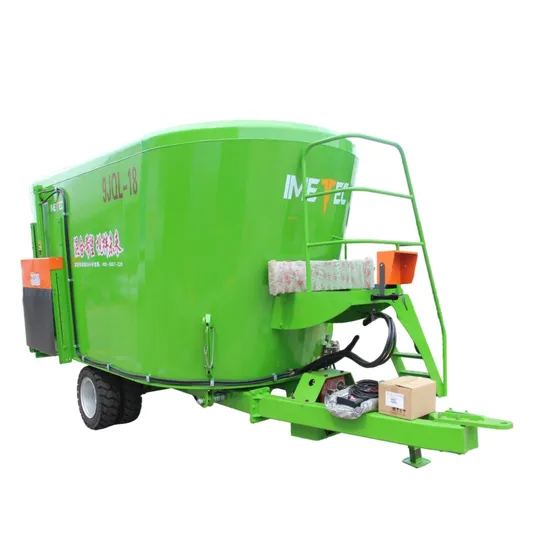

Vertical Mixer Tmr Feeder Livestock Cattle Goat Tmr Feed Grinder and Mixer Price
TMR-8CBM TMR feed mixer is used in cow farm for cow feeding.It is tratcor driven and easy to operate.This product has below feature:1, Can be motor driven2, vertical traction type feed mixer3, volume can be tailor made as request4, double opening door can be designed and made5, auto weighting system6, single packing auger or double packing auger can be choosen7 separate hydraulic system8 Sharp and strong knief Product description:
Vertical feed mixer is mainly powered by electricity with shovel and spreader to complete the feeding operation.
The mixer is adapted to: dairy cows, beef cattle and large-scale sheep farms, can be a variety of pasture, crop straw, silage and other fibrous feed mixing and stirring, after feeding.
9JGL series full-mixed ration mixer is a vertical stationary equipment, feed mixing method adopts the form of spiral vertical churning work, installed on the blade with blades, used to cut all kinds of hay, low noise, less pollution. There is a discharging device on the side of the box, the discharging door is closed when the fixed mixer is mixing, and the discharging door is opened to unload the feed after the feed is mixed. The back side of the fixed mixer has a feeding device (can be customized), hydraulic system control.
The feed is added in the following order: first long then short, first light then heavy, first dry then wet, first coarse then fine.
Feed mixing and adding order: long grass (sheep grass, alfalfa grass, oat grass, etc.) → silage (silage corn, barley) → by-products (cottonseed, beans, beet meal (Po), beer dregs, etc.) → with the concentrate → water or molasses.

Advantages of vertical TMR feed mixer:
1. Simple structure:
Simple structure; More accurate weighing; Easily handles large round or square hay bales; Wear rate of the mixer truck is greatly reduced due to the low pressure of the feed on the side walls of the barrel.
Vertical feed mixer trucks are simple in structure. In contrast, horizontal mixers have more parts and require more maintenance. In addition, more parts means a higher chance of failure, thus affecting normal use.
The mixing effect of vertical mixer is more uniform and accurate. The reason is that the feed is stirred up by the winch and then falls down naturally, so repeatedly, the mixing effect is very good.
Vertical feed mixer can easily handle large bundles of feed. Most of the horizontal mixer trucks have difficulty in handling large round or square bundles of feed, while vertical mixer trucks can mix them easily.
Because there is very little pressure on the bottom and side walls of the vertical mixer tank, the equipment wears out very slowly. Horizontal mixers do not have this advantage and wear out faster, with a correspondingly shorter service life.

Product Parameters

Name	Specification	Model	Dimensions(MM)	Weight(KGS)
9JQL Vertical traction mixer	4m³	9JQL-4	4100*2000*2300	≥2100
	6m³	9JQL-6	4200*2000*2500	≥2800
	8m³	9JQL-8	4400*2300*2700	≥3200
	10m³	9JQL-10	4400*2600*2700	≥3900
	12m³	9JQL-12	4500*2600*2900	≥4000
	14m³	9JQL-14	4770*2600*3100	≥5230
	16m³	9JQL-16	6000*2400*2800	≥5430
	18m³	9JQL-18	6560*2360*3010	≥6000
	20m³	9JQL-20	6800*2550*2800	≥7150
	22m³	9JQL-22	6950*2500*3000	≥7300
	24m³	9JQL-24	7000*2500*3100	≥7600
	26m³	9JQL-26	7200*2500*3100	≥7800
	30m³	9JQL-30	7200*3350*3100	≥8000

Detailed Photos TMR Feed Mixer features numerous augers for even material cutting. Continuous kneading during mixing ensures a fluffy TMR feed. The cutting augers are crafted from a special manganese alloy and undergo heat treatment, while the oval flower knife, with double-sided serrations, is interchangeable to enhance durability.The hydraulically controlled discharge door is user-friendly and requires minimal effort to operate.
Company Profile
Shandong IMETEC Intelligent Equipment Group Co.,Ltd is a national high-tech enterprise specializing in the research, development and export of intelligent livestock equipment, we have been focusing on intelligent ranch equipment for 25 years. We can supply livstock equipment such as TMR feed mixer, robot feed pusher, manure collector, leftover collecting machine, manure spreader, feed spreader sillage loader, feeder, feed pusher, manure collector, cow headlock and free stall, cow water trough, calf feeder, bed looser, etc 8 series and 200 kinds products. Among them 57 products in four categories have been included in the national agricultural machinery subsidy promotion catalog. It is sold well in more than 20 countries and regions at home and abroad, and is the top choice supplier of many listed dairy companies such as Yili and Mengniu.
Certifications
Exhibition
FAQ Q:I know very little about this machine, How should I make a choose?
A:please tell us your specific requirement, we will offer the most appropriate model for you,you can contact us at any time.
Q: What if the spare parts are broken?
A:For each machine,we will have several parts that can be replaced, have a three years warranty on the core parts.
Q:I don't know how to install and use it?
A:We will offer video and online instruction.
Q:Do you have a warranty?
A:Yes,we have one year warranty for our products.
Q:If the machine has a little mistake when produce and can not solve,what should i do?
A:Please contact us immediately,by email,WeChat,or telephone,our worker will give you the solution.

---
