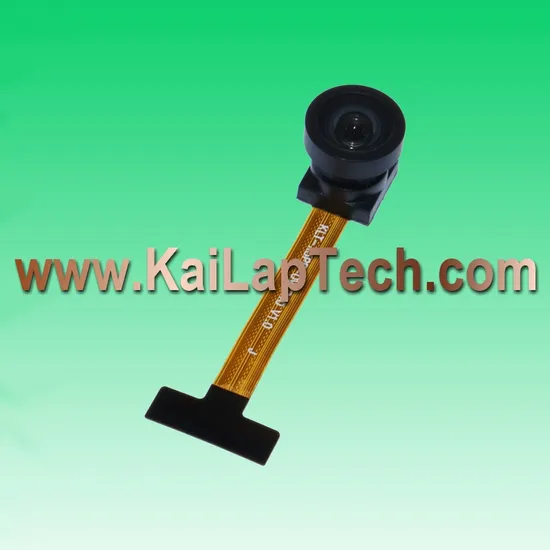

Klt-X5PF-Ov7740 V1.0 WiFi Camera 0.3MP Ov7740 Dvp Parallel Interface Fixed Focus Camera Module

Product Description

0.3MP OV7740 DVP Parallel Interface Fixed Focus Camera Module
Camera Module No. KLT-X5PF-OV7740 V1.0

Camera Module No.	KLT-X5PF-OV7740 V1.0
Resolution	0.3 MP
Image Sensor	OV7740
Sensor Type	1/5"
Pixel Size	4.2 um x 4.2 um
EFL	1.02 mm
F.NO	2.25
Pixel	656 x 488
View Angle	131.0°(DFOV) 110.0°(HFOV) 88.0°(VFOV)
Lens Dimensions	8.00 x 8.00 x 10.97 mm
Module Size	38.00 x 12.50 mm
Module Type	Fixed Focus
Interface	DVP Parallel
Auto Focus VCM Driver IC	None
Lens Model	KLT-LENS-TRC-4011G1
Lens Type	650nm IR Cut
Operating Temperature	-30°C to +70°C
Mating Connector	FH12-24S-0.5SH
