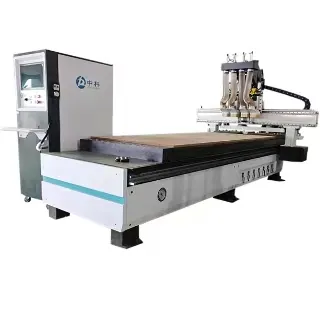

Woodworking CNC Engraving Machine Wood CNC Router Linear Atc Machine

Product Description

Product Description
Woodworking CNC engraving machines are powerful tools that enable precise and intricate designs to be crafted with relative ease. These machines are ideal for woodworkers of all skill levels, whether you are a beginner or a seasoned professional.
One of the key features of a woodworking CNC router is its linear ATC (automatic tool changer) system. This enables the machine to quickly and easily change between different cutting tools, allowing for even greater precision and flexibility when creating designs.
The possibilities with a woodworking CNC engraving machine are endless. From intricate carvings to simple cuts, the machine can help bring your creative vision to life. And, thanks to its high level of accuracy, it ensures that your designs are always executed with the utmost precision.
Even better, woodworking CNC routers are incredibly efficient, allowing you to complete projects quickly and efficiently. And, because they are so easy to use, even those with no prior experience can quickly learn how to make the most of these amazing tools.
Overall, if you are a woodworker looking to take your craft to the next level, investing in a woodworking CNC engraving machine with a linear ATC system is a smart choice. It will help you achieve your creative goals with ease and efficiency, and bring your designs to life in ways you never imagined possible.
Features
Thick steel welded bed structure, with thick gantry bar for supporting the heavy spindle
Taiwan HIWIN liner guide rail 25 size, helical rack transmission for X and Y axis
Shanghai WEIZHI 1KW servo motor and driver (Bus absolute value), with Japanese SHIMPO reducer
Shanghai WEIHONG control system
Four pieces spindles (all with China HQD 6KW air cooling spindles)
Vacuum adsorption table
One piece Water Vacuum pump 7.5KW
Position cylinders (functions are correcting board position , in total 7 pieces)
Auto tool sensor (calibrate cutter height)
Auto oil lubricating system
Auto pushing material device (double cylinders with three pieces guide rails)
5.5KW dust collector with 2 bags
Shanghai FULING inverter
8 collects and 20 pieces cutters
Fast processing buttons

Techinical Parameters

X,Y,Z,working	1300*2800*200mm
Whole structure	Welded thick steel bed structure with thick gantry bar
Guide rail	Taiwan HIWIN Square linear guide rail 25 size
X,Y,Z structure	Taiwan TBI ball screw,high precision
X,Y,Z Traveling Positioning Accuracy	±0.05mm
X,Y,Z repositioning Positioning Accuracy	< 0.02mm
Spindle	Four pieces spindles all with China HQD brand 6KW air cooling spindles
Working mode	Shanghai WEIZHI 1KW servo motor and driver (Bus absolute value), with Japanese SHIMPO reducer
Spindle Speed	0-18000rpm/min
Working Voltage	380V/ 3phase 50-60HZ
Command Code	G code (plt, mmg, uoo, bmp)
Operating System	Shanghai WEIHONG control system
X,Y Delicacy	<0.01mm
Software	Copy artcam software
Running circumstance	Temperature: 0°C~45°C Relative humidity: 30%~75%

Detailed Photos

Samples
Our Factory
Technical support:
Warranty is 1 year 24 hour technical support by email or calling User-friendly english manual for machine using and maintaining We will send you manual and guide video in English,if you still don't know how to operate it, we can help you by phone or Whatsapp,Skype. Payment terms:
You can do 30% prepayment at first, then we will start to make machine. when the machine is ready , we will take pictures to you, after we got you payment.We will send the machine to you.
Packing and shipping:
FAQ:
Q1: How can I get suitable machine?
First: Please tell us what's your max working area.
Second: Please tell us what material will be engraved or cutted?
Third: Please tell us what kind of product do you want to get.
Those three answers will help us choice suitable CNC Router for you.
Q2: What is your delivery time?
A:It depends on what kind CNC Router you order? But for common CNC Router, our production time is 15 working days.
Q3: Do you have operation manual for machine?
A:Surely we have, there have how to intall and operation machine, how to maintain machine and what place need to be notice during using our machine. We will sent CNC Router manual to you with our CNC Router machine.
Q4: This is the first time I use this kind of machine, is it easy to operate?
A:Yes, We will send you manual and guide video in English, it can teach you how to operate the machine. If you stilldon't know how to operate it, we can help you by phone or WhatsApp,Skype.
Q5:How should I pay for my order ? what is the procession of this purchase?
A:We accept TT by bank. you can do 30% prepayment at first, then we will start to make machine. when the machine is ready , we will take pictures to you, after we got you payment.We will send the machine to you. At the exhibition
We are at the exhibition

---
