Cylindrical grinding machine universal M1332 Cylindrical Grinding machine

Product Description

Cylindrical grinding machine universal M1332 Cylindrical Grinding machine Product Description

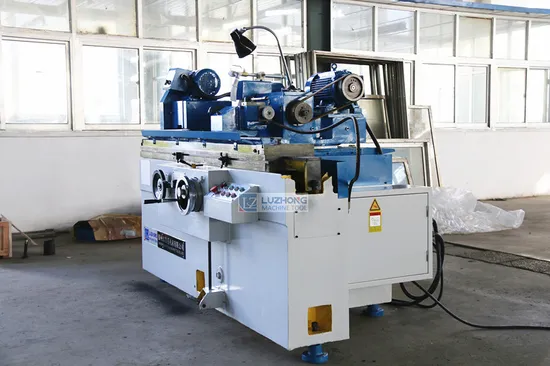

Detailed Photos
Product Parameters

Specifications		Units	M1332
Distance between centers		mm	1000/1500/2000/3000
Center height		mm	180
Dia. Ground(O.D)		mm	8-320
Max. length ground(O.D)		mm	1000/1500/2000/3000
Max. weight of work piece kg		kg	150
Center taper		(MT)	5
Spindle speed		r/min	26/52/90/130/180/260
Swiveling angle		r/min	1100
Wheel head rapid travel		mm	50
Max. travel		mm	235
Hand feed per rev		mm/rev	rough:2 precision:0.5
Hand feed per gra		mm/gra	rough:0.01 precision:0.0025
Wheel size (ODxWxID)		mm	600*75*305
Peripheral velocity		m/s	35
Hand feed per		mm/rev	6
Max. swiveling angle of table	Cockwise	°	3°
	Anticlockwise	°	7° (1000) 6° (1500) 5° (2000) 3° (3000)
Longitudinal speed range of table		m/min	0.1-4
Center taper		MT	4
Quill travel mm		mm	30
Wheelhead motor power		kw	11
Workhead motor power		kw	0.85/1.5
Machine weight		kg	3500(1000) 4600(1500) 7900(2000) 9900(3000)
Overall dimension(L * W * H)		mm	3260*2000*2050(1000)
			4260*2000*2050(1500)
			5400*2000*2050(2000)
			7390*2000*2050(3000)

Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
