PE PVC Pet Plastic Film Surface Corona Treater Flexo Printing Corona Treatment Machine

Product Description

Product Description PE PVC PET plastic film surface corona treater flexo printing corona treatment machine
Plastic Film Surface Corona Treater is a special equipment for corona treatment of the surface of various sheet materials such as plastic sheet, metal film sheet and paper. After the treated sheet is transported through the corona treatment area by the conveyor belt, the adhesion of its surface is improved. The corona power intensity can be changed by adjusting the rotation torque on the control panel, and the transmission speed is adjusted by the frequency converter to meet different treatment requirements.
Application Various plastic films, plates, aluminum foils, aluminized films (such as: PP, PE, PET, OPP, PS, ABS, etc.), paper and fiber materials.

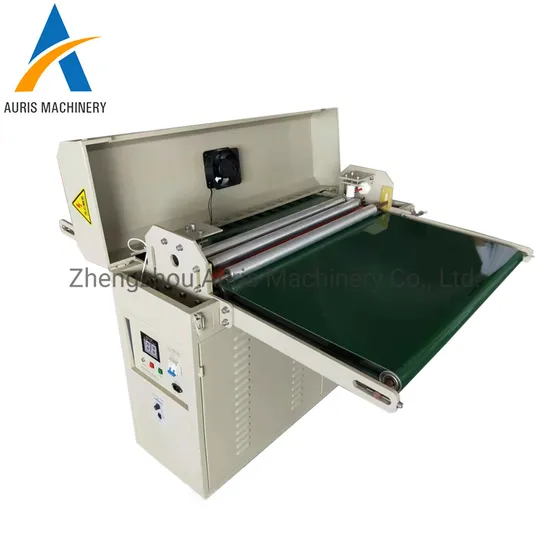

Product Pictures Corona treat machine can handle one side. If we want to deal with both sides, we can deal with the front side first, and then the back side, separate operations.
Product Parameters

Model	ATP-600	ATP-800
Weight	150kg	180kg
Dimension	1150*1100*1000mm	1350*1100*1000mm
Voltage	220v 50hz single phase	220v 60hz single phase
Power	3000w	3000w
Conveyor speed	2-20m	2-20m
Thickness of corona material	0.1-3.0mm	0.1-3.0mm
Max corona width	650mm	850mm
Discharge gap	1-5mm	1-5mm
Conveyor width	750mm	950mm

Detailed Photos The film plates corona treatment treator machine can handle a variety of plates. According to the width of the board, there are two models that can be selected.
Packaging & Shipping
The wooden case will be used for packaging the sheet corona treating machine.
