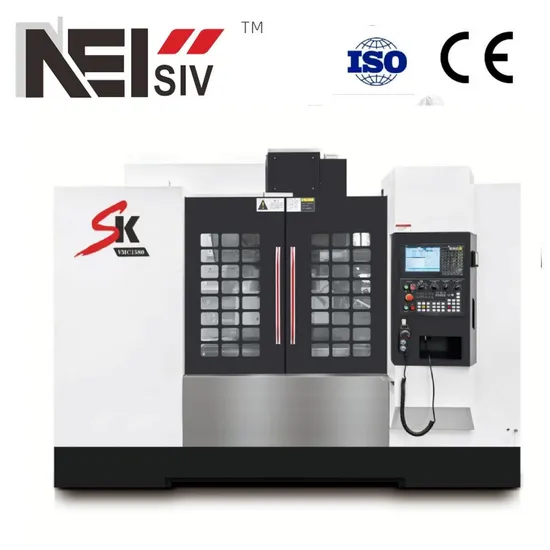

Sk Vmc 1160 5 Axis CNC Machine CNC Vertical Machining Center

Product Description

Vertical Machine Center Product Description
1.1 DESCRIPTION
The main shafts all adopt wide-area high-torque spindle motors with outstanding advantages such as wide constant power range, large output torque, low noise, maintenance-free, high speed, and low failure rate. Cooperating with the high-rigidity integrated spindle unit.
The heavy-duty cutting capability of the machine tool has been greatly improved, and the output torque of the spindle is twice that of ordinary models.
The main structure of the machine adopts modularization, a strong and closed box structure design, with good overall rigidity and strong heavy-duty cutting capability X/Y axis heavy-duty roller linear guideway.

1.2 FEATURE
1.The XYZ three-axis adopts heavy-duty roller linear guide rail, which has the advantages of good dynamic characteristics, large load-carrying capacity, high running precision, no creeping at low speed, and small frictional resistance.
2.X/Y/Z axis feed mechanism: AC servo motor + coupling + high-precision ball screw (pre-tightening treatment is adopted between the ball screw and the nut, the whole stroke
is inspected, and the clearance is eliminated structure.
3.The Z-axis is driven by a high-power servo motor with brake (without mechanical balance device) to ensure that the machine tool has a high dynamic response speed, and is equipped with a Sudden drop function (that is, Z-direction anti-fall and rapid lifting when power is off, preventing damage to tools or workpieces).


1.3 OUR ADVANTAGES
Suitable for precision parts processing such as aerospace, automobile manufacturing, mold manufacturing, hardware processing, etc.
01 Workbench,Ultrasonic quenching, precision grinding.
02 Linear rail
Taiwan HIWIN/PIM linear rail is used, which has high precision, large load-bearing capacity, strong stability, long service life, and is suitable for high-precision processing requirements.
03 Tool magazine
Disc-type tool magazine, which can rotate without noise and change tools quickly and accurately.
04 Advanced control system
Mitsubishi, Fanuc, Siemens, etc. can be selected according to customer requirements.
1.4 PARAMETER

Specification	Unit	VMC850	VMC855	VMC1160	VMC1370	VMC1580
X/Y/Z axis	mm	800/500/500	800/550/550	1100x600x600	1300x700x700	1500/800/700
Distance from spindle nose to workbench	mm	100-600	120-670	150-750	100-800	170-870
Track form		XY:Linear guide Z:Box guide	XYZ: Linear guide	XYZ: Linear guide	XYZ: Linear guide	XYZ:Y4 Linear guide
Workbench size(L*W)	mm	1000x500	1000x550	1200x600	1400x700	1700x800
The max.load capacity	kg	500	500	800	1100	1500
Slot	No/mm	5-18	5-18	5-18	5-18	5-22
Spindle taper hole		BT40	BT40	BT40	BT40	BT50
Spindle speed	rpm	8000	8000	8000	8000	6000
Spindle drive mode		Belt	Belt	Belt	Belt	Belt
X/Y/Z axis rapid feeds	m/min	36/36/24	36/36/24	32/32/24	24/24/24	20x20x18
Max.cutting feed	mm/min	10000	10000	10000	10000	10000
Tool change method		arm	arm	arm	arm	arm
Tool Capacity	tools	24	24	24	24	24
Maximum tool weight	kg	8	8	8	8/15	8/15
Fastest tool change time(T-T)	sec	2.5	2.5	2.5	2.5	4
Spindle motor	kw	7.5/11	7.5/11	11/15	11/15	15/18.5
Positioning accuracy	mm	±0.006	±0.006	±0.006	±0.006	±0.006
Repositioning accuracy	mm	±0.003	±0.003	±0.003	±0.003	±0.003
L*W*H	mm	2500x2400x2600	2600x2400x2550	3100x2550x2600	3800x3100x2900	3950x3150x3000
Weight	kg	5000	5000	7000	9500	12000

1.5 STANDARD ACCESSORIES

1	24 disc tool magazines	10	Spindle output water
2	X,Y,Z axis ball screw: HIWIN/PMI	11	X,Y,Z axis bearing: NSK
3	X,Y,Z liner guideway:HIWIN/PMI	12	Portable chip blowing air gun
4	Workpiece Cooling System	13	Network transmission and CF card function
5	Fully enclosed protective cover	14	Automatic lubrication system
6	Spindle blowing device	15	Working light
7	Workpiece Cooling System	16	Tri-color warning light
8	cleaning air gun	17	Foundation screws and pads
9	Iron chipping disc and chip storage box	18	Tools and Toolboxes

2. SERVICE
2.1TRAINING AND INSTALLATION
2.2AFTER SALES
1. Starting from the BL date, the manufacturer offers a one-year comprehensive 'three guarantees' service for the product (user-induced damage will incur additional costs).
2.
In the event of a machine tool malfunction, the manufacturer will accurately diagnose the issue and provide immediate assistance upon receiving user feedback. If the cause is indeterminate,a response will be provided within 24 hours.
2.3 Package
FACTORY WORKSHOP
3.Discover the Unmatched Advanced Capabilities of Our STATE-OF-THE-ART FACTORY WORKSHOP
Company Profile
4. Company Strength
4.1 General Situation
Founded in 1993, Anhui Gaochuan Sikai CNC Equipment Manufacturing Co., Ltd. (formerly known as Nanjing Sikai), our company, now proudly named NanJing Newsiv Equipment Co., Ltd., made a monumental strategic relocation to Ma'anshan, Anhui in 2021.
As a trailblazing high-tech enterprise, we specialize in the innovative design and precision manufacturing of CNC machine tools. Our flagship products boast completely independent intellectual property rights, and several of our series have been distinguished with the prestigious Jiangsu Province High-tech Product Certificates.
Recognized as a pioneering high-tech enterprise, we forged a dynamic partnership with China Transmission Group in 2010. With the group's unwavering support, we strive for unparalleled excellence and continuous self-improvement. We collaborate with illustrious international and Taiwanese machine tool companies to achieve extraordinary quality and performance, aiming to compete at the pinnacle of global standards.
4.2 Participation in Exhibitions
Certifications
4.3 Certifications: At NANJING NEWSIV EQUIPMENT CO., LTD., our unwavering commitment to excellence is underscored by a portfolio of prestigious certifications. These endorsements affirm that our Vertical CNC Milling High Precision Gantry Metal Cutting Heavy Duty Center adheres to the pinnacle of quality and safety standards.
4.4 FAQ: Delve into our meticulously curated FAQ section, designed to address all your critical queries regarding our Vertical CNC Milling High Precision Gantry Metal Cutting Heavy Duty Center. From intricate technical specifications to comprehensive operational guidance, we ensure you possess all the essential information for a confident and informed decision-making process.
5. Other Products: Embark on a journey through our extensive array of pioneering equipment, extending beyond our Vertical CNC Milling High Precision Gantry Metal Cutting Heavy Duty Center. Unveil groundbreaking solutions tailored to meet a myriad of industrial demands with unparalleled precision and exceptional performance.

---
