Professional Ring Die Chicken Sheep Cattle Cow Goat Grass Feed Pellet Making Machine

Product Description

Professional Manufacturer Ring Die Animal Feed Pellet Machine Feed Granulator

Product Description

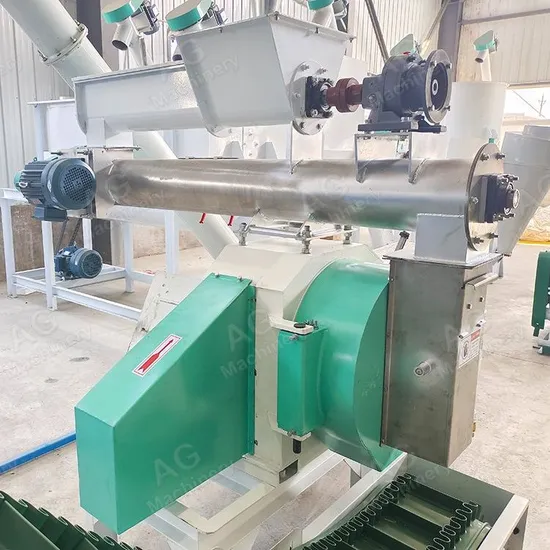

The SZLH series feed pellet machine is a ring die (mould) type animal feed making machine with Large capacity.
The production capacity of different models of SZLH series pellet machines ranges from 1T/H to 40T/H to meet clients' different needs.
The core part is made of stainless steel and special alloy steel to ensure the durability and corrosion resistance of the machine.
The motor adopts Siemens motor and has long service life. The ring die design is reasonable, the pellets is discharged quickly, there is no clogging, the granules are formed to a high degree and feed quality.
This feed mill is suitable for a variety of feed types, livestock feeds such as pigs, cattle, sheep, horses, etc., poultry feeds such as chickens, ducks, geese, etc., aquatic feeds such as shrimps, sinking fish feeds, etc.

Product Parameters

Model	SZLH-250	SZLH-300	SZLH-320	SZLH-350	SZLH-420
Out-put / Capacity	0.5~2 t/h	1.5~3 t/h	2~4 t/h	3~7 t/h	3~12 t/h
Main motor	22KW	30KW	37KW	55KW	110KW
Feeding motor	0.75kw	0.75kw	0.75kw	1.1kw	1.5kw
Conditioner motor	1.1kw	1.1kw	2.2kw	3kw	5.5kw
Inner diameter of ring die	250mm	300mm	320mm	350mm	420mm
Feed Pellet Size	Φ2, Φ2.5, Φ3, Φ3.5, Φ4, Φ5, Φ6, Φ7, Φ8 mm (diameter)
Dimension	1.1*1.86*1.6(m)	1.35*1.88*1.65(m)	1.95*0.89*1.87(m)	2.2*1.2*1.94(m)	3.29*1.5*2.5(m)
Weight	900kg	1035kg	1300kg	1500kg	3500kg

Product Features
* Adopt single-layer, dual-layer and multiple-layer jacket conditioner or double-shaft differential diameter conditioner can be configured to meet different production demands of high-grade livestock and poultry feeds and aquatic feeds;
* Feeding part is equipped with a permanent magnet to remove metallic impurities; this prolongs the service life of main parts and meanwhile reduce the use of auxiliary equipment;
* Enlarged stainless steel conditioner can provide long time conditioning and curing;
* Drive mechanism adopts high strength belt, with steady running and low noise; and high-quality bearing to ensure high speed and stable operation;
Machine Details
Spare Parts
RING DIE / MOULD
Made of special stainless steel, wear-resistand, longer service lifetime.
The ring die adopts the design of quick discharge hoop, easy to replace, high efficiency and large output.
Rollers

The pelleting chamber of the Animal Feed Machine is made up of two rollers, two roller shells and ring die, and other fixing parts.
stable performance, reliable quality and advanced technique.
Application:

Export Package for Delivery

---
