US$10,000.00-15,000.00
|
1 Set
(MOQ)
|
Basic Info.
Application
Powder, Granules, Powder
Mixing Drum Shape
Circular Groove
Operating type
Continuous Operating
Transport Package
Wooden Case
Production Capacity
60PCS/Month
Product Description

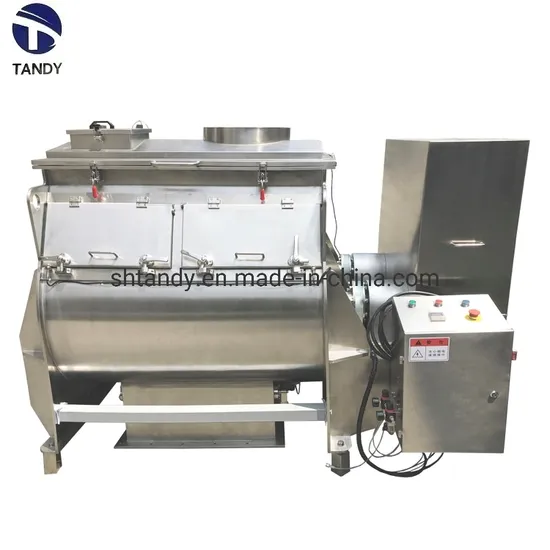

Masala Powder Agitation Double Shafts Paddle Mixer
Main Technical Data:
Model no.
| Effective Volume(L)
| Loading coefficient
| Power(KW)
| Rotation speed(r/min)
| Dimension (mm)
| Weight(kg)
|
TDW-300
| 300
| 0.6-0.8
| 4
| 53
| 1330X1130X1030
| 560
|
TDW-500
| 500
| 0.6-0.8
| 7.5
| 53
| 1480X1350X1220
| 810
|
TDW-1000
| 1000
| 0.6-0.8
| 11
| 45
| 1730X1590X1380
| 1230
|
TDW-1500
| 1500
| 0.6-0.8
| 15
| 45
| 2030X1740X1480
| 1680
|
TDW-2000
| 2000
| 0.6-0.8
| 18.5
| 39
| 2120X2000X1630
| 2390
|
TDW-3000
| 3000
| 0.6-0.8
| 22
| 31
| 2420X2300X1780
| 3320
|
Pls feel free to contact us if you need more technical parameters!
|
FAQ:
1. Manufacturer or trading company : Manufacturer
2. Location : Songjiang district , Shanghai
3. Selling markets: Europe, American, Australia, Asia, Africa
4. Customized: Available for customized designs
5. Delivery time: 15 - 30days
6. Warranty period: 1 year
Product Description:
Double shafts paddle mixer is called no gravity mixer, too; it is widely applied in mixing powder and powder, granular and granular, granular and powder, and few liquid; it is used for food, chemical, pesticide, feeding stuff, and battery ect. It is high precision mixing equipment and adapts to mixing; it is evenly mixing on materials with gravity, proportion, particle size different. It makes part fragmentation with adding fragmentation equipment. The mixer quality can be from 316L, 304. Main Features:
1. Double shaft paddle mixer is with 2 horizontal paddle shaft; there is the paddle on each shaft;
2. with the driven equipment, two cross paddle shafts moves intersection and patho-occlusion.
3. Driven equipment makes paddle rotating fast; the rotating paddle generates centrifugal force during high speed rotation, spilling the material to the upper part in the barrel, then material falling down (the vertex of material is in a so-called instant non-gravity state). Driven by the blades, material is mixed back and forth; also sheared and separated by the meshing space between the twin shafts; fast and evenly mixed.
More Pictures Show:
Packaging & Shipping:
Company Information:
Our Exhibitions:
Service:
>>
