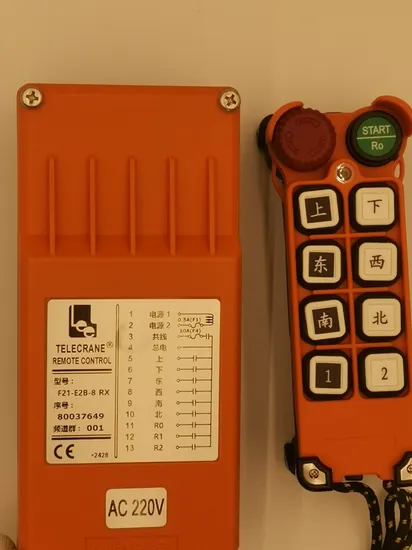

Telecrane Wireless Remote Control F21-E2m-8 Electric Hoist Control Crane Remote Control

Product Description

Product DescriptionDimension: 20.0 x 8.5 x 6.0 cm
Weight: 805 g(with wire cable)
Power Supply: (1) 24/36/48/110/220/380 VAC ±20%
(2)12~24 VDC
Features
1. PLL series (AFS Auto frequency selection)
2. 8 single step buttons, 1 start button and 1 EMS
button
3. Internal antenna
4. Auto frequency selection(real time frequency
changing technology)
5. Reliable communication(integrating hamming
code and CRC(Cyclic Redundancy Check)
technology, which provides more accurate radio
communication)
6. The smart transmitter generates SRC(Security
Random Code) radio signal with random coding
to prevent spy copying
7. Innovative e-Card(plug & play) design: all system
data are saved inside an e- Card, being similar to
SIM card in the mobile phone, for easy transfer to
a spare transmitter & receiver to avoid the
downtime in the case of a transmitter or receiver
malfunction.
8. Transmitter acting like an e-Card duplicator, can
be used for data back-up and transfer.
9. Non-repeated 4.3 billion sets ID code
10. Low power consumption transmitter
11. Temperature range : -35°C ~ +85°C
12. Powerful function setting software(optional)for
easy customized configuration
13. Material : Nylon +30% Glass-Fiber
14. Standard configuration:
* Transmitter(with Protection cover)*1
* Receiver(with wire cable)*1
* User manual* 1
Main Product
Industrial Radio remote control F21 series,including F21-E1B, F21-E1, F21-E2,F21-4S, and F24-4D and o on.F21 series is the most popular one, and find its way on the international market because of highest cost efficient, and it is greatly popular.F24 is designed to use in construction cranes, bridge cranes and also in special applications with durability and low cost. Programmable function setting via Windows software !Ultra-low battery power consumption (Eco-Friendly)Pre-wiring receiver made the installation easy and fast ever!Durable nylon-fiber housing for extra shock resistanceLow power consumption with 2 AA batteries (last up to 2 months in normal operation)Operating range up to 100 meters Programmable function setting through Windows-based softwareEconomic efficiency, ease of operation Microsoft Windows based software for easy customize configurationPre-wiring standard cable making wiring procedures easier.100% compatible components reducing stock of spare part.Safety features:
4.3 billions unique ID code / Hamming code > 4 / enhanced watch-dog circuitOperating temperature range -35°C to +80°CSAGA Series
*Rugged, durable, IP65 industrial specification housing
*Security provided by more than 4 billion sets of never repeating lD codes
*Ultra low power consumption - about 3 months with two No. 5 alkaline batteries
*DebugTechnique with Hamming Code
*Normaloperation in the environment with -45 to+80c
*The operating distance can reach 100 meters
*The specially designed relay module is suitable for installation on highly vibrating engineering vehicles and automatic machines and tools
*The receiver,provides an output cable, allowing you to easily and quickly complete the installation equipment
*Design of safety circuit to prevent sudden power failureAPB Series PLC
Features:
Main module: 12\22\24 points; Extension module: 22 points;
It is flexible for extending, and the optimal max. configuration: 7 I/O extension modules, 1 voice module, and 1 SMS module;
Program memory capacity: 320 FBDs, EEPROM; It is allowed to place a Li-ion battery to power the clock;
Under the circumstance of DC12-24V, the main machine at most has 12 voltage analog inputs 0-10V, 2 current analog inputs 4-20mA and 2 analog outputs 4-20mA;
High-speed operation: at most 4 high-speed inputs 10KHZ and 2 high-speed outputs 10KHZ;
MODBUS protocol, and can be connected to SH-300 (Text Panel); New function blocks: pulse width modulation (PWM), pulse output (PTO), ACC, SMS and analog calculation etc.;SR series PLC
This intelligent controller, adopting function block programming, having large programming capacity, being freely programmed according to different users and different fields, can run at your desired time table and the RTC accuracy can reach second and makes your time control more accurate.
And up to 128 time sessions can be set , especially suitable for time-control system. Safety password function makes your program absolutely safe. Before writing program, password can be set. And only after entering the correct password, can the program be modified.
It is equipped with a removable, convenient and programmable LCD, providing 64 friendly human-machine interfaces, 32 virtual keys, having the function to display the alarming message and parameter and to modify the parameter. When needed, it can be installed. And when not needed, it can be removed and replaced with an ordinary front panel.
Thus the cost will be greatly reduced. The input can receive not only the digital input but also the analogue input to perform the control and . transmission of fthe temperature, moisture, pressure, flow level unit and so on.
It has well-featured and compact design with 8 point input and 4 point output. Equipped with expansion module, it can be expanded into 82 I/O better ,and to MAX 122I/O.It can be connected with telephone voice module and remote control module to perform the notification and alarming function. Company Profile
