Conventional Normal Manual Single Double Column Tool Post Metal Turnig Vertical Lathe Machine Factory Price

Product Description

VERTICAL LATHE MANUAL

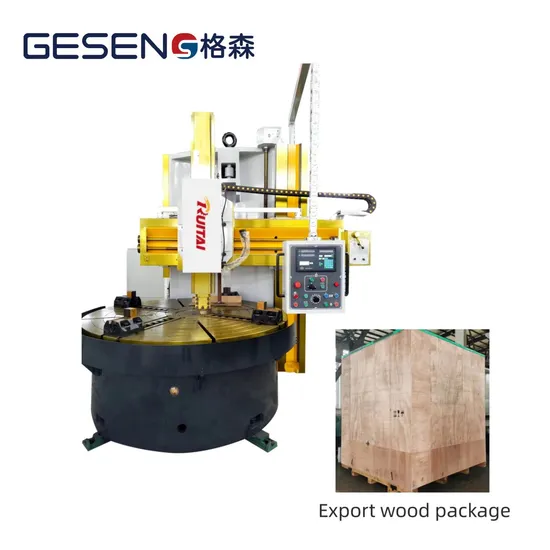

SINGLE COLUMN VERTICAL TURNING LATHE MANUAL
SINGLE COLUMN VERTICAL TURNING LATHE is suitable for:
1. High speed steel and hard alloy tools,
2. Processing all kinds of ferrous metal,
3. Non-ferrous metal and some non-metallic materials of the workpiece.

SINGLE COLUMN VERTICAL TURNING LATHE can do machining:
1. Finish roughing and fining the inner and outer cylindrical surface,
2. Inner and outer conical surface, flat surface, curved surface,
3. Grooving, threading and other processes
C5123 ram
C5112 ram C5116 pentagonal C5120 pentagonal

Parameters Single column conventional vertical lathe
No.	Items	Unit	C5112	C5116	C5120	C5123	C5126
1	Worktable diameter	mm	1000	1400	1800	2000	2250
2	Max. turning diameter	mm	1250	1600	2000	2300	2600
3	Max. turning height	mm	1000	1200	1250	1350	1500
4	Max. Weight of work piece	t	3.2	5	8	8	8
5	Worktable rotary speed grade	grade	16	16	16	16	16
6	Range of table speeds	r/min	6.3-200	5-160	4-125	3.2-100	2.5-80
7	Vertical tool post feed steps	grade	12	12	12	12	12
8	Vertical tool post feed range	mm/min	0.8-86	0.8-86	0.8-86	0.8-86	0.8-86
9	Horizontal stroke of vertical tool post	mm	700	915	1110	1210	1265
10	Vertical stroke of vertical tool post	mm	630	800	800	800	800
11	Main motor power	kw	22	30	30	30	37
12	Machine weight (about)	t	8.5	12	~16	~17	22

DOUBLE COLUMN VERTICAL TURNING LATHE MANUAL
1. Ruitai double column vertical lath is suitable for machining procession in various industries made of well qualified raw materials . 2. Applied for processing of internal and external cylindrical surface, conical surface, end face, groove, arc surface and threads, etc. 2. Adopting16/4 main spindle speed so that table speeds range from 0.42-42r/min.
3. Equipped with constant current hydrostatic guide rail, to achieve high rotation precision and large bearing capacity.
4. Designed with servo motor, ball screw drive structure and sealing cover to make sure the safety of machine.
The two tool posts can choose CNC or DVT conventional system.

Parameters Double column conventional vertical lathe
No.	Items	Unit	C5225	C5231	C5240	C5250	C5255
1	Worktable diameter	mm	2250	2830	3200	4500	5500
2	Max. turning diameter	mm	2500	3150	4000	5000	5000
3	Max. turning height	mm	1600	1600	2000	2000	2500
4	Max. Weight of work piece	t	15	15	15	40	40
5	Worktable max. torque	Kn.m	63	63	63	100	100
6	Range of table speeds	r/min	2.5-63	2.5-63	2.0-50	0.2-40	1-40
7	Cutting force of tool post-right tool post	KN.m	40	40	40	50	50
8	Ram horizontal stroke	mm	1400	1650	2150	2700	2900
9	Ram vertical stroke	mm	1000	1000	1000	1250	1400
10	Tool bar size	mm	40x40	40x40	40x40	50x50	50x50
11	Main motor power	Kw	55	55	55	75	90
12	Beam motor power	Kw	7.5	7.5	11	15	15
13	Machine weight(about)	KG	35	41	47	74	77

CUSTOMIZATION SERVICE
Professional machine design to meet various working demands.
Vertical tool rest/tool turret/working height/worktable/CNC or manual/color
Kindly contact us to get your vertical lathe machine tool.

---
