Automatic Inner Props Welding Equipment

Product Description

Product Description

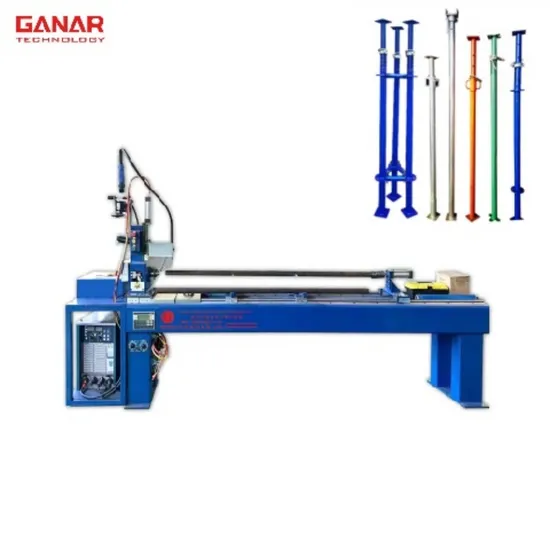

VH-SP01 Automatic Steel Prop Inner Props Welding Machine
PLC controlled with human machine interface. AC servo to adjust the speed.It no need spot welding by human in advance. People manually put the plate on the machine, and then the machine will auto weld it. SP02 equipped with 2pcs Japan OTC welding gun. MAG/CO2 inverter gas shield welding. The welding gun are in a fix position, while the pipe is rotated when welding the pipe. If need, the welding gun can be adjusted the position and angel. The machine can be adjusted to weld the pipe length from 500mm to 3000mm. The outer dia. of the pipe can beΦ48mm and Φ60mm. The thickness of the pipe can be 2.5-3.5mm.
Speed: 669pcs for 8 hours.

Detailed Photos
VH-SP01 Automatic Steel Prop Inner Props Welding Machine
After Welding:
Product Parameters

Name	Steel Support Inner Props Automatic Welding Machine
Item No.	VH-SP01
Brand	VANHN
Welding technology	Gas shielded welding MAG/CO2)
Steel tube length range	1000mm-2600mm
Steel tube inner diameter range	Φ48mm-Φ60mm
Tube thickness	2.5-3.5mm
Steel tube rotation speed range(rpm)	3.0-20.0
Welding gun	1 pc
Welding gun manual adjusting range	X:100mm Y:100mm
Welding gun lifting stroke	0.100mm
Rotary spindle center height	150mm
Rated voltage	3 Phase 50Hz/AC380V+Zero line 220V
Rated power	11kw
Max. current of the collecting ring	800A
Air pressure range (Mpa)	0.4-0.6
Machine dimension	L:3300mm W:700mm H:1500mm
Machine weight	700kg
Packing dimension	L:3800mm W:1000mm H:1700mm
Machine packaging weight	1000kg

Packaging & Shipping
Our products come with exquisite packaging that protectsthem from damage during transportation.
1. Cleaning machine.
2. Wrap all the machine and parts with bubble film and plastic film.
3. Forklift the packed machine to the container.
4. Choose the optimal routes and transportation modes according to the distance.
Company Profile

Ganar Tech is a company which founded in 2013, 400 employees, 100, 000 square meters. Our exported business started in 2020.
Driven by innovation:Our focus is on enhancing production performance for customers - most of whom are in the branded goods industry - and this will continue to be the case in the future.Whether you need first-rate production lines or machines that offer unrivaled flexibility and reliability from day one - we′ve been doing it since we established.We deliver state-of-the-art technology and peak quality - in each individual machine as well as each complete line system.Our main objective is to keep our customers′ operations running with maximum productivity. To ensure we achieve this, more than 15% of our entire workforce is deployed in the areas of Pre-Sales Engineering and After Sales Service.We keep your machines running, worldwide and around the clock!We offer the perfect synergy of experience, automation technology, and scale to advance factory automation solutions for the world′s leading manufacturers.We′re pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. Delivering excellent performance is in our DNA.
Our Advantages

Gift for you: Tool kit together will be sent together with our machine.
1.We use high-quality materials and adopt exquisitecraftsmanship to ensure the product's durability andaesthetics.
2.We prioritize user experience, with a simple and intuitiveinterface that is easy to operate.
3.This product strictly adheres to safety standards duringdesign and production,ensuringuser safety.
4.We provide regular product upgrades and maintenanceservices to ensure your product remains in optimal condition.
5.In addition to the main product, we also offer a range ofaccessories and attachments to meet your diverse needs.
6.We emphasize environmental protection and energyconservation,This product features low energy consumptionand high efficiency.
7.Our products come with exquisite packaging that protectsthem from damage during transportation.
8.We offer a variety of models and specifications for you tochoose from,catering to the needs of different customers.
After Sales Service

1. After-sales service commitment:
We promise to provide users with 24 hours of efficient, professional and caring after-sales service to ensure the performance, function, safety and stability of the equipment;
2. After-sales service system:
We have established a perfect after-sales service system, including after-sales service center, after-sales service station, after-sales service engineer, after-sales service customer service and other institutions and personnel;
3. After-sales maintenance service plan:
We have developed a reasonable after-sales maintenance service plan including warranty period, warranty scope, charging standard, maintenance criteria and other content;
4. Training program:
We have developed a professional training program, including training objectives, training content, training methods, training testing and evaluation.
FAQ
Q1:If I have some problems, what should I do?
A:-You can contact our salesman directly, our engineer will check the problem. We Provide proofing service before sale and free technical training, online technical guidance, video guidance.
Q2:How long is the warranty?
A:-We offer a 1-year warranty. We will provide detailed information as soon as possible.
Q3:Can the machine be customized in size?
A:-Of Course.You can tell us what you want to welding and the size. We will customize the machine according to your size.
If you need help, we have a professional team to help you.
If you have other mold needs technical instruction and video instruction are also provided.
