Product Description
Product Description
Product Description

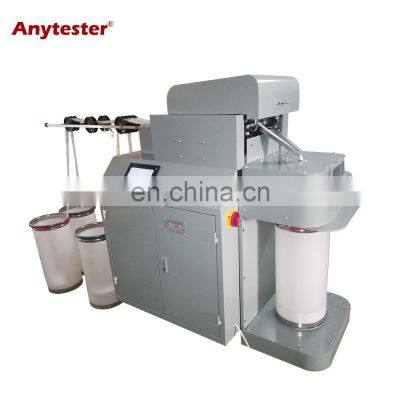

AT204 Laboratory Drawing frame is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT204 Laboratory drawing frame is used to make drawn sliver from carded sliver.
Detailed Images
Mini machine, save researching cost and easy to operate and maintain;
Touch screen & PLC control;
Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;
Frequency converter of high efficiency to control roll speed;
Doubling up to 8 slivers;
Four-up-four down drafting structure;
Can coiler to output and coil cotton sliver in sliver can;
Specification
Model
| AT204
|
Fiber type
| Cotton or cotton-type chemical fibe
Customized for wool
|
Doubling
| Up to 8
|
Feed type
| Sliver
|
Output type
| Sliver
|
Sliver speed
| 2, 4, 6, 8, 10, 12, 14, 16m/min, selectable
|
Roll diameter
| ¢35mm
|
Drafting type
| 4-roll, 3 straight line drawing
|
Drafting structure
| 4-up-4-down
|
Drafting range
| 2~30
|
Doubling range
| Up to 8
|
Pressurizing method
| Spring pressure cradle
|
Output capacity
| 0.25~1kg/h, adjustable
|
Sliver can size
| Φ250×550mm
|
Control mode
| Touch screen & PLC control
|
Power supply
| AC220V 50Hz, 650W
|
Dimensions
| 1300×800×1750mm (L×D×H)
|
Weight
| 400kg
|
Packing Details
Packaging
|
Size(cm)
| 130(L) * 80 (W) * 175 (D)
|
Weight
| 400Kg
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Item
|
T/T
| EXW
30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)
30% T/T in advance,paid the balance against copy of B/L
CIF
| 30% T/T in advance, paid the balance before shipment
|
FOB
|
CFR(C&F)
| 30% T/T in advance,paid the balance against copy of B/L
|
CIF
|
L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
West Union
| Amount lower than 50,000usd
|
Delivery Time
| 7~10 days after receiving payment for one container
|
