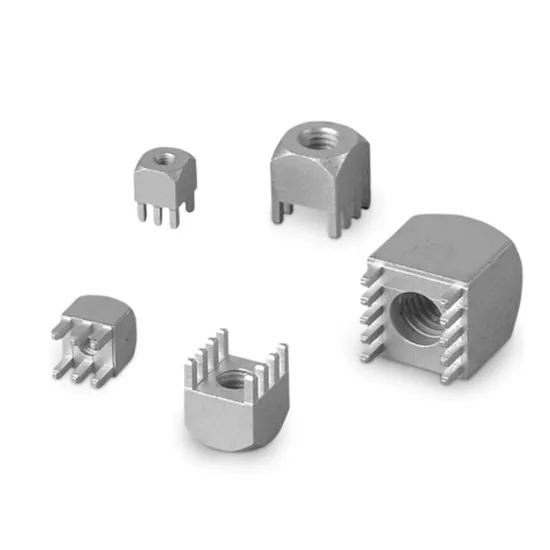

Manufacture (7461058) High Quality Brass Tin Plating High Current Terminal PCB Terminal

Product Description

Type	Original P/N	Sinhoo P/N	Pin count	Thread	Thread Code	S	L	L1	L2	L3	P1	P2
BUTR	7461057	BUTR-0630-01	6	M3*0.5	30	7	9.5	6	3.5	5	5.08	2.54
	7460305	BUTR-0840-01	8	M4*0.7	40	9	10.5	7	3.5	6	7.62	2.54
	7460307	BUTR-0850-01	8	M5*0.8	50	9	10.5	7	3.5	6	7.62	2.54
	7461084	BUTR-0860-01	8	M6*1	60	10	17	13.5	3.5	9	7.62	2.54
	7460553	BUTR-1080-01	10	M8*1.25	80	13	17	13.5	3.5	10	10.16	2.54
	7461058	BUTR-12100-01	12	M10*1.5	100	16	21	17.5	3.5	13	12.7	2.54
BUCF	7461148	BUCF-0825-01	8	M2.5*0.45	25	7	9.5	6	3.5	-	5.08	2.54
	7461086	BUCF-1240-01	12	M4*0.7	40	9	9.5	6	3.5	-	7.62	2.54
	7460408	BUCF-1250-01	12	M5*0.8	50	9	9.5	6	3.5	-	7.62	2.54
	7461059	BUCF-1660-01	16	M6*1	60	13	17	13.5	3.5	-	10.16	2.54
	7461090	BUCF-2080-01	20	M8*1.25	80	16	17	13.5	3.5	-	12.7	2.54
	7461060	BUCF-20100-01	20	M10*1.5	100	16	21	17.5	3.5	-	12.7	2.54
BUFU	7462810	BUFU-0430-01	4	M3*0.5	30	5	10.5	7	3.5	4	2.54	-
	7461093	BUFU-0930-01	9	M3*0.5	30	7	9.5	6	3.5	4	5.08	2.54
	7461095	BUFU-1640-01	16	M4*0.7	40	9	10.5	7	3.5	4	7.62	2.54
	7461147	BUFU-1650-01	16	M5*0.8	50	9	10.5	7	3.5	4	7.62	2.54
	7461097	BUFU-1660-01	16	M6*1	60	10	14	10.5	3.5	7	7.62	2.54
	7461099	BUFU-2580-01	25	M8*1.25	80	13	17	13.5	3.5	8	10.16	2.54
	7461061	BUFU-36100-01	36	M10*1.5	100	16	21	17.5	3.5	10	12.7	2.54

---
