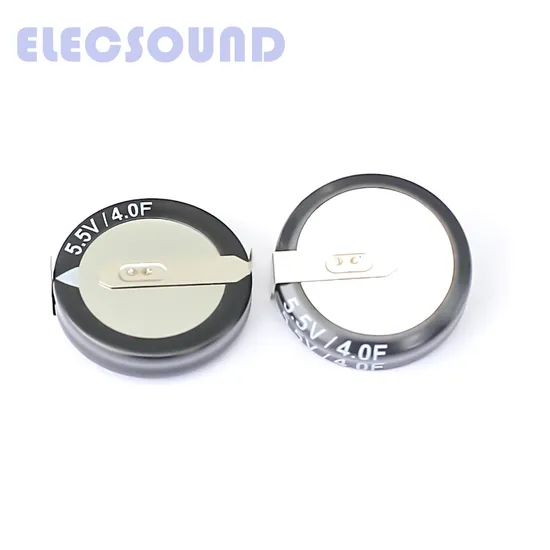

Dipped 5.5V Coin Type Cylindrical Type Super Capacitors

Product Description

Coin Type Super Capacitors ELECSOUND
PRODUCT SPECIFICATION Small size, large capacity , good memory characteristics of voltage, high reliability, long life time,
low temperature characteristics and free of environmental pollution.
Can be applied to electronic field (electric toy, voice IC, LED light-emitting device, small UPS power, etc.)

General Characteristics
Item Specification
Rated voltage(V) 5.5 V DC
Rated discharge apacitance 0.22F - 4F
Capacitance tolerance -20%~+80%
Max. work voltage 6.0 V
Nominal Impedance
AC Imp 16-85Ω
DC Imp 40-130 Ω
Working temperature range -25~70ºC
Storage temperature range -40~85ºC

Environmental Characteristics
Items			Specification/Condition
Temperature characteristics			△C/C≤30%, ESR ≤ specified ESR(25ºC) at +70ºC △C/C≤50%, ESR≤ 4 times of specified ESR(25ºC)at -25ºC
High temperature load			△C/C≤30%,ESR≤ 4 times of specified ESR(25ºC)at +70±2ºC/1000hrs/rated voltage
High temperature storage			△C/C≤30%,ESR≤2 times of specified ESR(25ºC)at +70±2ºC/1000hrs/standby after fully charge
Humidity Resistance			+40ºC±2, 90--95%RH,240h,△C/C≤30%,IL≤2 times of specified leakage current, ESR≤4 times of specified ESR (25ºC)

Part No.	Capacitance (F)	ESR (OHM 1KHz)	V Type			H Type			C Type
			ΦD±0.5 mm	H±0.5 mm	P±0.5 mm	ΦD±0.5 mm	H±0.5 mm	P±0.5 mm	ΦD±0.5 mm	H±0.5 mm	P±0.5 mm
ES5R5224Z	0.22	75	9.5	14.0	4.5	9.5	10.5	9.5	13.0	13.0	5.0
ES5R5334Z	0.33	75	9.5	14.0	5.5	9.5	10.5	9.5	13.0	13.0	5.0
ES5R5474Z	0.47	50	12.5	17.5	4.5	12.5	9.5	12.5	13.0	13.0	5.0
ES5R5684Z	0.68	30	16.0	19.5	4.5	16.0	9.2	16.0	20.5	12.5	5.0
ES5R5105Z	1	25	19.0	22.5	4.5	19.0	9.5	19.0	20.5	12.5	5.0
ES5R5155Z	1.5	25	19.0	5.0	4.5	19.0	9.5	19.0	20.5	12.5	5.0
ES5R5405Z	4	16	24.6	9.0	24.5	24.6	28.8	6.0	-

Product Overviews
We currently offer a broad range of capacitors, LEDs, Cermet Trimming Potentiometers, PCBs, Semiconductors, Transistors, Zinc Oxide Varistors, Switches and Resistors.
Company Information
Elecsound is an ISO Certificated manufacturer of high quality, high reliability electronic components, formed in January of 1996. Our staff has over 10 years of experience with excellent English. All of our employees have a strong work ethic and a strong commitment to provide the high quality products that consistently meet or exceed our customer's requirements.
Certificates
Packaging & Shipping
FAQ
1: How long is your lead time?
It depends. Normally, it is 2-6 working days if the goods are in stock, or it is 7-40 days if the goods not in stock.

2: What is your terms of payment ?
For small amount orders, 100% better paid by PayPal or T/T in advance. For large amount orders like more than
10000USD, 30% T/T in advance , balance fully paid before shipment.

3. Do you have any MOQ limit for an order?
Yes, we have MOQ. different items have different MOQ. We will mark MOQ when we quote.

4: How to proceed an order?
Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and pay deposit for the official order. Finally, we arrange the production and ship once it's ready.

5: Do you accept online orders?
Sure!! We prefer to fulfil orders under Trade Assurance system, since both parties will be protected.

6: Do you provide samples? is it free or extra?
Yes, normally we could offer samples with free charge but do not pay the shipping freight.

7: How do you guarantee my goods right?
Order will be arranged exactly as requested, we will doubly check the packing and qty before delivering out also we will take you photos if required or necessary.

8: Is it OK to print my logo on the packing?
Of course, customized packing accepted!! But it may bring some cost, it depends on the qty, if small qty then we don't accept.
