Uni-Tech Mechanical Type Radial Drilling Arm Drilling Machine Z3040

Product Description

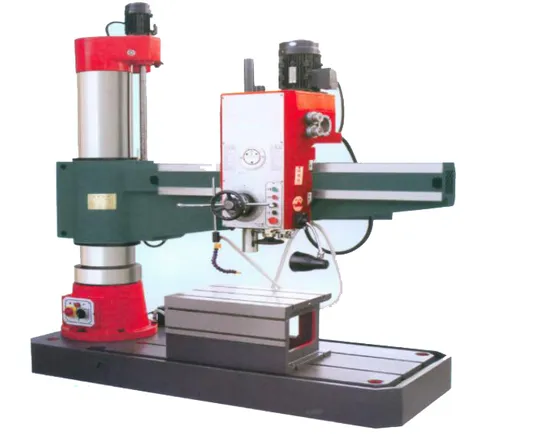

UNI-TECH mechanical type Radial Drilling arm drilling Machine Z3040
These radial drilling machines of Model ZQ3040×13 are our main products and sell well at home and abroad because of their best quality and stability. These machines can be used to implement many processes, such as drilling ,expanding, reaming ,grooving ,tapping and etc. On the small and middle parts and even boring if the relevant equipment are available and they are regarded as the idler machining equipments in the machinery and machine work industries.
Radial Drilling Machine
universal machines
capable of drilling
counter-boring reaming,
spot-facing tapping

1.The radial drilling machine is universal machines, capable of drilling, counter-boring, reaming, spot-facing, tapping and other similar utilities.
2.It is widely used in manufacturing machinery, for processing small and medium size machinery parts and also suitable for being used in repairing.
3.The machine is adopted strengthened type of spindle so that it increases the rigidity of spindle and widens the scope of utility.
4.The spindle has a wide range of turning speed and feeding speed, which make the operation more convenient and more precise.
5.The dimension processed can be set up before working, this allow it stop feeding automatically and has more accuracy
radial drilling machine radial drilling machine radial drilling machine radial drilling machine radial drilling machine radial drilling machine radial drilling machine radial drilling machine radial drilling machine radial drilling machine

Specifications and parameters	Z3040×11C	Z3040×14C
The biggest hole diameter (mm)	40	40
The dimension from the centerline of the main shaft to column bus (mm)	350-1060	350-1380
Level of the spindle box moving distance (mm)	710	1030
The spindle end face to face distance (mm)	180-1110	270-1200
Main shaft trip (mm)	250
The spindle taper hole	4
Spindle speed level 6 (r/min)	41,80,160,300,630,1250
The spindle feeding level 3 (mm/r)	0.10,0.16,0.25
Main shaft to allow maximum feed resistance (N)	6300
Rocker arm lifting speed (m/min)	1.3
For the turning Angle of the rocker	±180°
The main motor power (kw)	3
Lifting motor power (kw)	1.1	1.5,
Net weight (kg) about machine tool	1500	2100
Machine tool contour size	1500×705×2200	1800×810×2300

Any more questions pls contact us again
TENGZHOU UNI-TECH CO.,LTD

---
