Basic Info.
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Max. Load Bearing of Worktable
150kg
Max. Spindle Speed
8000rpm
Transport Package
Wood Case
Specification
CE, ISO9001
Production Capacity
30sets/Month

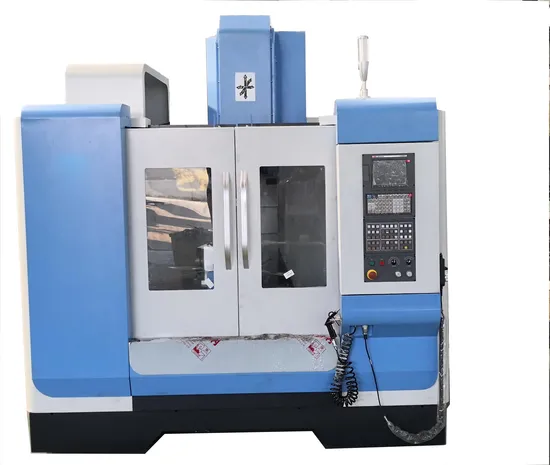

Product Description
Configuration:
Taiwan spindle unit BT40
X,Y,Z axis TAIWAN LINEAR guideway
GSK218 CNC controller
12pcs umbrella type tool magazine
Schneider Electric
Door power-off
Full protection
spindle blowing chip removal system,
spindle air curtain protection
Japan BEARING
auto centralized lubrication system,
rigid tapping
two water cooling, one air cooling
electrical hand wheel,
working lamp,
RS232 interface,
alarm light
DNC online processing
Speicfication:
| ltem |
Unit | XH7132A |
| Worktable size | mm | 900*320 |
| T-slot(N*W*D) | mm | 3-14-100 |
| Max. load bearing of worktable | Kg | 150 |
| X axis travel | mm | 550 |
| Y axis travel | mm | 320 |
| Z axis travel | mm | 500 |
| Distance from column front to Spindle center | mm | 370 |
| Distance from table top surface to Spindle nose | mm | 80-580 |
| Spindle hole taper | | BT40-120 |
| Spindle power | KW | 3.7 |
| Max. Spindle speed | rpm | 8000 |
| Max. feed speed | mm/min | 10000 |
| Rapid feed speed (XYZ) | mm/min | 24/24/20 |
| Positioning accuracy(XYZ) | mm | 0.02 |
| Re-positioning accuracy(XYZ) | mm | 0.01 |
| Tool Magazine | | Bamboo hat |
| Tool magazine capacity | | 12 |
| Tool chinge time(T-T) | s | 7~8 |
Machine dimension
L*W*H | mm | 2250x2000x2200
2250x2000x2350 |
| Machine weight | Kg | 2600 |
| GSK218 | |
>>
