Metal Shredder/Tire Shredder/Plastic Crusher of Recycling Machine/ Gl32120

Product Description

3E MACHINERY's GL series Two Shaft Shredders have been designed for a wide array of applications and industries, suitable for shredding solid material such as e-waste, metal, wood, plastic, scrap tires, packaging barrel, pallets, etc.Depending on input material and the following process the shredded material can be used directly or go into the next step of size reduction.It is widely used in industry waste recycling, medical recycling, electronic recycling, pallet recycling, municipal solid waste recycling, plastic recycling, tire recycling, papermaking industry and etc.

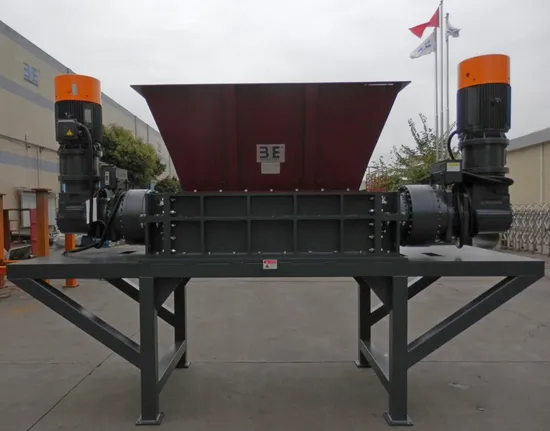

The GL series two shaft shredder has two rotors built into the machine that rotate at low speeds, high torque and low noise.Adopt sienmens logo microcomputer control system with function of start, stop, automatic reverse sensors to protect the machine against over loading and jamming.
Application
GL32-40 series is our conventional range of middle size two shaft shredders. Suitable for crushing the all kinds of plastic drum, metal drum, big size pipe, pipe fittings, forklift splint, tyres, packing barrel, aluminum, copper and steel less than 5mm.
Specification
GL32-40 series is our conventional range of middle size two shaft shredders. Controlled by microcomputer (PC), featuring start, stop, reverse functions. It is fitted with an automatic overload return mechanism to prevent damage to rotor and other parts. And It has advantage of high efficiency, low noise and economical etc.

tem Model	GL3280	GL32100	GL32120	GL40100	GL40130	GL40160
Dimension L/W/H(mm)	2940×1816×2270	3275×1946×2275	3416×1946×2275	3334×1866×2670	3716×2234×2670	4674×1770×3765
Cutting chamber C/D(mm)	812×736	1012×736	1213×736	984×948	1324×948	1624×948
Rotor Diameter (mm)	φ430	φ430	φ430	φ514	φ514	φ514
Blade quantity (pcs)	20	25	30	20	26	32
Blades thickness (mm)	40	40	40	50	50	50
Main Motor Power (kw)	15+15	22+22	22+22	37+37	45+45	45+45
Weight (kg)	3700	4100	4500	6500	8700	9200

Features
Certification
3E MACHINERY was awarded 18utility model patents and 3 invention patents.
Our service 1.Pre-sale support
3E Machinery consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
On-site inspection.
2. After-sale service
3E's skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a 3E technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
3E holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.
3. Technical support
3E provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
Regular return visit.
Company profile
3E GROUP is an integrated company specialized in developing, manufacturing, distributing and providing recycling machinery solutions. Our main entity " Guangzhou 3E Machinery CO. Ltd" founded in 2003, has currently become focusing on "Shredding" and "Recycling industry" modern enterprise. Technology is the core-competitiveness of 3E Group, we are active in the recycling market and keep cooperating with well-known enterprises in Europe and the USA. Meanwhile, 3E Group keeps on improving and innovating, so far, we awarded 18utility model patents and 3 invention patents. "Efficient Economical & Environmental" is the traditional idea of 3E Group. With its own intellectual property and solid technological team, our products have been already sold to over 90 regions and countries which include the USA, Europe, Australia, Southeast Asia, Latin America, and Middle East.

---
