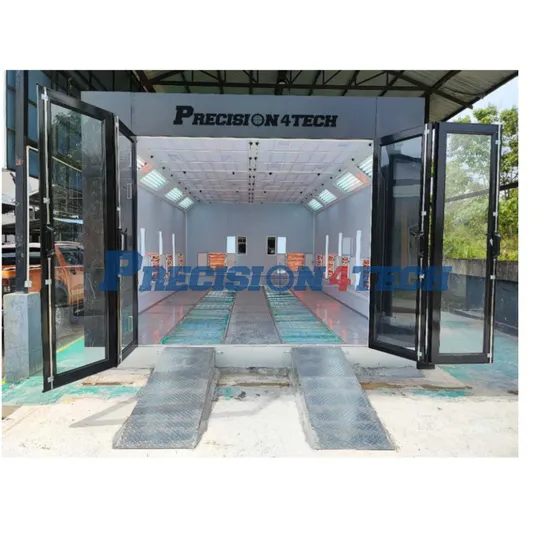

| MODEL | DOWN DRAFT DDE-1 Solvent extral height | UPDATE | 2022/7/27 |
| Inside Size | 6900×3900×3570mm(L×W×H) | Outside Size | 7000×5300×4320mm(L×W×H) |
| Entrance Door | 3 leafs sheet metal doors, size is 3,000x3,520mm(WxH) | ||
| Personnel Door | 1 leaf ,size is 600x1800mm(WxH) | ||
| Cabin | EPS wall panels with concave type construction, the thickness is 50mm, higher density than standard height. | ||
| Basement | Steel structure base height is 300mm; improved two rows of grilles 30*5 belt steel, three rows of diamond plates, two ramps 280×1800mm(H×L) | ||
| Intake Air Units | 2 sets intake fan model: YDW; single power 4kw capacity:20000m³/h | ||
| Outlet Air units | 1 set outlet fan, model: YDW, single power 7.5KW capacity: 20000m³/h | ||
| Fan Cabinet | Square tube welded frame, galvanized sheet sprayed skin, Electric damper | ||
| Heating System | stainless steel heat exchanger,1 set RIELLO G10 diesel burner, heating capacity is 180000kcal/h | ||
| Filtering System | Pre-Filter Effectively capture dust particles larger than 10um Ceiling filter. Efficiently capture dust particles larger than 4um with a capture rate of ≥98% | ||
| lighting System | Ceiling lights :24pcsx16w LED lamp ≥800Lux Side vertical panel lights: 2x4pcsx48w, 2 rows, LED lamp ≥800Lux | ||
| Control System | Electric control box: Leakage protection, painting, baking varnish, lighting, emergency stop switch, timer, temperature control etc. | ||
| Power supply | 380v/3phase/60HZ | ||
| Maximum Baking temperature | 60ºC | ||
| Total power | 16.5KW | ||
| Color | White | ||
