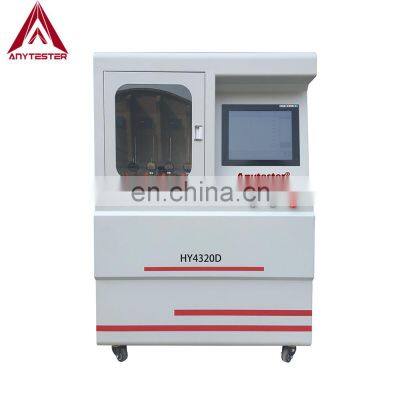

Product DescriptionAT432D HDT/Vicat Tester is used to determine the heat distortion temperature (HDT) and Vicat softening point of plastic materials. It is widely suitable for plastic, hard rubber, nylon, electrical insulating materials, long fiber reinforced composite materials, high strength thermosetting lamination materials and other non-metallic materials. StandardISO 2507, ISO 75, ISO 306ASTM D1525, ASTM D648GB/T 8802, GB/T1633, 1634,Note: For more standards, please contact us!SpecificationModelAT432DControlMicrocontrollers and industrial computers step control systemTemperature rangeRT~300℃Heating speed120℃/h [(12±1)℃/6min]50℃/h [(5±0.5)℃/6min]Max. temperature error±0.5℃Temperature measurement point1Working position3, (4 optional)Deformation range0～1.1mmMax. deformation error0.01mmSample support span64mm, 100mm(can adjust as ASTM D method)Heating mediumMethyl silicone oil or transformer oilCooling methodBelow 150℃: water cooling or natural coolingOver 150℃: natural coolingDimension550mm×500mm×1400mmPower supplyAC220V, 50Hz 4.5KWDetails & Features★Using industrial computer control, solid-state hard drive, system stability, low failure rate;★Digital micrometer measure deformation, real-time curve drawing;★ The test data can be directly second processing on the PC, test data can be imported into the OFFICE software to edit;★Automatic smoke exhaust system has been design to guarantee the operator’s health and not contaminate the environment;★Sample racks automatically lift and down, no need manual operation.★Easy to operate, precise control;★Temperature protective circuit, being independent from the controlling system, is designed to protect the tester when temperature of medium exceeds its using range;Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1160x510x1050mmWeightApprox. 80kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
