Product Description
Product Description
Van Veen Grab Application
Sediment Sampler for collecting bottom sediments for biological, hydrological and environmental studies.
Van Veen Grab General
The bottom sampler grab is based on the Van Veen design. It is made of AISI 316 stainless steel and the surface is electro polished. The grab itself is manufactured from 3 mm plate (250 cm²), 4 mm for 1000 cm² and 8 mm for a 2000 cm².

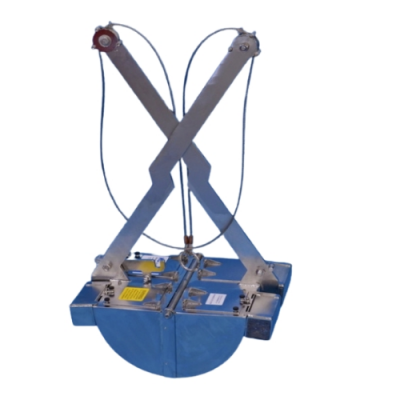

Model shown with 4 pcs lead weights (12.205 - to be ordered separately)
Van Veen Grab Sizes
12.110 - 250 cm², (0,025 m²) - 3,14 L.
12.111 - 250 cm², (0,025 m²) - 3,14 L, ISO norm*
12.210 - 1000 cm², (0,1 m²) - 15 L.
12.211 - 1000 cm², (0,1 m²) - 15 L, ISO norm*
12.310 - 2000 cm², (0,2 m²) - 50 L, ISO norm*
12.410 - 2500 cm², (0,25 m²) - 82 L, ISO norm*
12.420 - 5000 cm² (0,5 m²) - 140 L, ISO norm*
Models marked with * have lids with stainless steel mesh and rubber mats to reduce the shock wave. They all fulfills the Norwegian ISO standard (16665 Water quality - Guidelines for quantitative sampling and sample processing for of marine soft-bottom macro fauna). Most standard grabs can easily be upgraded to the ISO norm by adding new frames and lids.
Van Veen Grab specification
Ordering No.
| 12.210/12.211
|
Sample area:
| 1000 cm² - 4 lids
|
Sample:
| 15 L
|
Dimensions, L x W x H:
| 136 x 36 x 35 cm
|
Lids:
| 4 lids, 120 x 120 mm each
|
Materials:
| AISI 316 stainless steel. The grab = 4 mm
|
Net weight:
| 25 kg
|
Operation weight:
| 25 kg. Max. net. weight by adding lead weights: 45 kg (optional)
|
Optional lead weights:
| Max. 20 kg (4 x 5 kg - No. 12.205)
|
Shipping weight inclusive pallet, without optional weights:
| 75 kg
|
Shipping weight inclusive pallet, inclusive optional weights (20 kg):
| 95 kg
|
Pallet:
| L x W x H: 120 x 80 x 56 cm.
|
>>
