Product Details
Product Description
Product Description

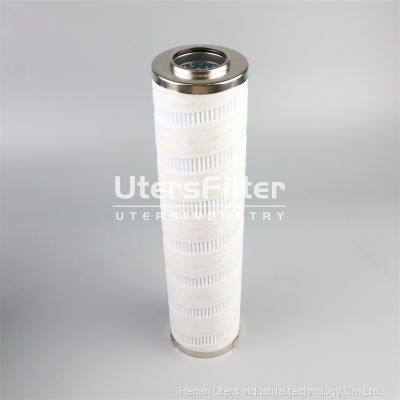

HC2233FKS6H RP2233F1206H UTERS Industrial Hydraulic Filter Cartridge
Filter Element Application:
The hydraulic oil filter element is an indispensable part of the pipeline series of the conveying medium. It is usually installed in the inlet filter of the hydraulic system to filter out metal particles and contaminants in the fluid medium and to protect the normal operation of machinery and equipment.
The application range of hydraulic oil filter elements is very wide, covering almost all industries: steel, electric power, metallurgy, shipbuilding, aviation, paper making, chemical industry, machine tools and construction machinery, construction machinery and other fields.
Filter Element Features:
1. Filtration accuracy: 1-200um filtration ratio: X≧99.9
2. Working pressure: (MAX) 21Mpa
3. Working medium: hydraulic oil; lubricating oil; fluid medium such as industrial water
4. Working temperature: -30℃~+110℃
5. Filter material: high-strength stainless steel mesh; glass fiber; filter paper and other materials
6. Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
Quality Standard:
ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test
ISO 2943------Material Compatibility with Fluids
ISO 3724------Flow Fatigue Characteristics
ISO 3968------Pressure Drop vs. Flow Rate
ISO 4572------Multi-pass Performance Testing
Package Pictures
Why choose us?
1) Professional hydraulic filter manufacturer ,own factory ,has a professional team .
2) Small piece of sample can be free.
3) Competitive prices and timely deliver.
4) Quality guaranteed and thoughtful after-sales service .
5) Accept any quality tests .
Trade & Market :
Over several years development , our products have reached the domestic and international advanced level in the same industry . our products are exported to Britain ,Australia,India ,Canada and other countries and regions ,the excellent quality has gotten high prise by the domestic and foreign customers ,if any new inquiry ,welcome here .
