Basic Info.
Type
Surface Grinding Machine
Controlling Mode
PLC Control
Automatic Grade
Automatic
Cylindrical Grinder Type
Surface Grinding Machine
Certification
GS, CE, RoHS, ISO 9001
Name
Metal Surface Grinding Machine
Magnetic Chuck Table Size
400X1000mm
Max. Loading Capacity
600 Kgs
Grinding Type
Surface Grinding for Metal
Chuck
Magnetic Chuck Table
Longitudinal Moving
Hydraulic
Vertical Travel
Servo Motor
Control
Nc Automatic Control Grinding
Grinding Wheel Size
350X40X127mm
Wheel Speed
1450rpm, 1750rpm
Transport Package
Wooden Case
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
320.00cm * 227.00cm * 225.00cm
Package Gross Weight
3700.000kg
Product Description

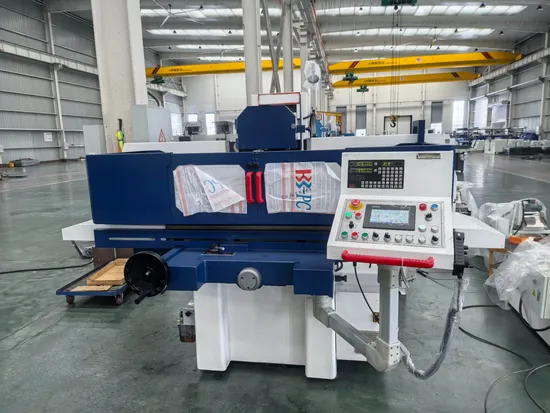

NC Series Saddle Moving Grinder Surface Grinding Machine SGA40100NC
| Model | Unit | SGA40100NC |
| Table size | mm | 406*1020 |
| Magnetic chuck size | mm | 400*1000 |
| Max.distance from spindle center to table | mm | 580 |
| Max.loading capacity(include chuck) | kg | 600 |
| X axis feed | | |
| Feed speed | m/min | 5~25
|
| Micro feed rate | m/min | 5~25 |
| Z axis feed | | |
| Feeds peed | m/min | 0~1 |
| Intermittent feed rate | mm/t | 1~18 |
| Micro feed rate | mm | 0.005 |
| Y axis feed | | |
| Feed speed | m/min | 0~1 |
| Micro feed rate | mm | 0.005 |
| Spindle rotating speed | r/min | 1450(50HZ)/1750(60HZ) |
| Grind wheel size | mm | 350*40*127 |
| Spindle motor power | kw | 4 |
| floor space (L*W*H) | mm | 4400*2200*1900 |
| Grossweight | kg | 3700 |
| Package size(L*W*H) | mm | 3200*2270*2250 |
Standard accessories:
grind wheel
grind wheel flange
coolant tank
balancing arbor
electrical magnetic chuck
wheel extrator
leveling wedge and bolt
wheel dresser stand
build in magn. chuck controller
working lamp
tools and tool box
PLC auto grind controller
closed guard of worktable
diamond pen
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.
>>
