Ftsilo Grain Storage Silo 3000 5000 Ton Wheat Corn 50-10000ton Steel Grain Storage Silo

Product Description

Product Description

HOPPER BOTTOM SILO
The bottom steel silo stores materials that flow out of the silo automatically, with good self-purification effect and no residue. This silo is suitable for seed, flour, breeding, chemical and other industries with moderate reserves and frequent warehouse clearing. The hopper bottom steel silo has a solid steel support structure and high hopper bottom strength. The hopper bottom slopes are 40°, 45°, and 60° . The 60° hopper bottom steel plate silo is suitable for storing granular and powdery materials with high viscosity.
Features:
· Self-flow out of warehouse
· No manual labor required
· Energy saving
· Low basic cost
FLAT BOTTOM SILO
Flat-bottom steel silos are widely used and are generally used for large diameter and large capacity silos. This form is easy to construct and has low cost. The discharge method can be fluidized discharge, multi-hole discharge, flat-bottom sweeping machine discharge, manual clearance, or cement cone bottom method can be used to realize self-discharging. This type of steel silo is mostly used in grain processing and storage industries such as oil, feed, flour, starch, brewing, ports, and grain depots.
Features:
· Simple structure
· Large capacity
· There are many ways to exit the warehouse
· Easy maintenance
INSULATION SILO
The structure of insulation silo is to line the outside of the steel warehouse body with different layers of insulation materials, and then install color steel profile plates around the outside of the insulation layer as outer silo panels to cover the steel silo and the insulation layer as a whole. It can maintain storage conditions in a stable ambient temperature state, meet storage stability, and achieve long-term safe storage.
Features:
· Short construction period
· Good thermal insulation performance
· Beautiful image
· Less heat conduction
· Horizontal thermal insulation, not easy to deform
Product Parameters

Diameter	Model	Volumn(m3)	Capacity 550kg/m3	Capacity 720kg/m3	Capacity 750kg/m3
3.6	TCZ03602	33	18	24	25
	TCZ03603	45	25	32	34
	TCZ03604	56	31	40	43
	TCZ03605	68	37	49	52
	TCZ03606	80	44	58	61
	TCZ03607	92	51	66	70
4.5	TCZ04503	73	40	53	56
	TCZ04504	92	51	66	70
	TCZ04505	111	61	80	85
	TCZ04506	129	71	93	99
	TCZ04507	148	81	107	114
	TCZ04508	166	91	120	127
	TCZ04509	185	102	133	142
5.5	TCZ05504	138	76	99	106
	TCZ05505	165	91	119	127
	TCZ05506	192	106	138	148
	TCZ05507	218	120	157	168
	TCZ05508	245	135	176	188
	TCZ05509	272	150	196	209
	TCZ05510	298	164	215	229
	TCZ05511	324	178	233	243
6.4	TCZ06405	231	127	166	177
	TCZ06406	267	147	192	205
	TCZ06407	303	167	218	233
	TCZ06408	339	186	244	261
	TCZ06409	375	206	270	288
	TCZ06410	411	226	296	316
	TCZ06411	447	246	322	344
7.3	TCZ07305	314	173	226	241
	TCZ07306	361	199	260	277
	TCZ07307	408	224	294	314
	TCZ07308	455	250	328	350
	TCZ07309	503	277	362	387
	TCZ07310	550	303	396	423
	TCZ07311	597	328	430	459
	TCZ07312	644	354	464	495
	TCZ07313	692	381	498	532
8.2	TCZ08206	468	257	337	360
	TCZ08207	528	290	380	406
	TCZ08208	588	323	423	452
	TCZ08209	648	356	467	498
	TCZ08210	708	389	510	545
	TCZ08211	768	422	553	591
	TCZ08212	828	455	596	637
	TCZ08213	888	488	639	683
	TCZ08214	948	521	683	729
9.1	TCZ09107	666	366	480	512
	TCZ09108	740	407	533	569
	TCZ09109	886	487	638	626
	TCZ09110	886	487	638	682
	TCZ09111	960	528	691	739
	TCZ09112	1034	569	744	796
	TCZ09113	1108	609	798	853
	TCZ09114	1182	650	851	910
10	TCZ01008	914	503	658	703
	TCZ01009	1003	552	722	772
	TCZ01010	1092	601	786	840
	TCZ01011	1181	650	850	909
	TCZ01012	1271	699	915	978
	TCZ01013	1360	748	979	1047
	TCZ01014	1449	797	1043	1115
	TCZ01015	1539	846	1108	1185
11	TCZ01108	1112	612	801	856
	TCZ01109	1218	670	877	937
	TCZ01110	1324	728	953	1019
	TCZ01111	1430	787	1030	1101
	TCZ01112	1536	845	1106	1182
	TCZ01113	1643	904	1183	1265
	TCZ01114	1749	962	1259	1346
	TCZ01115	1855	1020	1336	1428

12.8	TCZ12810	1585	872	1141	1189
	TCZ12811	1730	952	1246	1298
	TCZ12812	1875	1031	1350	1406
	TCZ12813	2020	1111	1454	1515
	TCZ12814	2164	1190	1558	1623
	TCZ12815	2309	1270	1662	1732
	TCZ12816	2454	1350	1767	1841
	TCZ12817	2599	1429	1871	1949
	TCZ12818	2744	1509	1976	2058
	TCZ12819	2889	1589	2080	2167
	TCZ12820	3034	1669	2184	2276
	TCZ12821	3179	1748	2289	2384
	TCZ12822	3324	1828	2393	2493
	TCZ12823	3469	1908	2498	2602
13.7	TCZ13710	1830	1007	1318	1373
	TCZ13711	1996	1098	1437	1497
	TCZ13712	2162	1189	1557	1622
	TCZ13713	2328	1280	1676	1746
	TCZ13714	2494	1372	1796	1871
	TCZ13715	2661	1464	1916	1996
	TCZ13716	2827	1555	2035	2120
	TCZ13717	2993	1646	2155	2245
	TCZ13718	3160	1738	2275	2370
	TCZ13719	3326	1829	2395	2495
	TCZ13720	3492	1921	2514	2619
	TCZ13721	3658	2012	2634	2744
	TCZ13722	3825	2104	2754	2869
	TCZ13723	3991	2195	2874	2993
	TCZ13724	4157	2286	2993	3118
14.6	TCZ14611	2282	1255	1643	1712
	TCZ14612	2471	1359	1779	1853
	TCZ14613	2660	1463	1915	1995
	TCZ14614	2849	1567	2051	2137
	TCZ14615	3028	1665	2180	2271
	TCZ14616	3227	1775	2323	2420
	TCZ14617	3416	1879	2460	2562
	TCZ14618	3605	1983	2596	2704
	TCZ14619	3794	2087	2732	2846
	TCZ14620	3983	2191	2868	2987
	TCZ14621	4172	2295	3004	3129
	TCZ14622	4361	2399	3140	3271
	TCZ14623	4550	2503	3276	3413
	TCZ14624	4739	2606	3412	3554
15.5	TCZ15511	2594	1427	1868	1946
	TCZ15512	2807	1544	2021	2105
	TCZ15513	3020	1661	2174	2265
	TCZ15514	3233	1778	2328	2425
	TCZ15515	3446	1895	2481	2585
	TCZ15516	3660	2013	2635	2745
	TCZ15517	3874	2131	2789	2906
	TCZ15518	4088	2248	2943	3066
	TCZ15519	4301	2366	3097	3226
	TCZ15520	4515	2483	3251	3386
	TCZ15521	4729	2601	3405	3547
	TCZ15522	4943	2719	3559	3707
	TCZ15523	5156	2836	3712	3867
	TCZ15524	5370	2954	3866	4028
	TCZ15525	5584	3071	4020	4188
16.5	TCZ16511	2920	1606	2102	2190
	TCZ16512	3160	1738	2275	2370
	TCZ16513	3400	1870	2448	2550
	TCZ16514	3640	2002	2621	2730
	TCZ16515	3880	2134	2794	2910
	TCZ16516	4119	2265	2966	3089
	TCZ16517	4359	2397	3138	3269
	TCZ16518	4598	2529	3311	3449
	TCZ16519	4838	2661	3483	3629
	TCZ16520	5078	2793	3656	3809
	TCZ16521	5317	2924	3828	3988
	TCZ16522	5557	3056	4001	4168
	TCZ16523	5796	3188	4173	4347
	TCZ16524	6036	3320	4346	4527
	TCZ16525	6276	3452	4519	4707
17.4	TCZ17414	4073	2240	2933	3055
	TCZ17415	4340	2387	3125	3255
	TCZ17416	4607	2534	3317	3455
	TCZ17417	4874	2681	3509	3656
	TCZ17418	5140	2827	3701	3855
	TCZ17419	5408	2974	3894	4056
	TCZ17420	5675	3121	4086	4256
	TCZ17421	5942	3268	4278	4457
	TCZ17422	6209	3415	4470	4657
	TCZ17423	6475	3561	4662	4856
	TCZ17424	6742	3708	4854	5057
	TCZ17425	7010	3856	5047	5258
18.3	TCZ18314	4529	2491	3261	3397
	TCZ18315	4824	2653	3473	3618
	TCZ18316	5119	2815	3686	3839
	TCZ18317	5414	2978	3898	4061
	TCZ18318	5710	3141	4111	4283
	TCZ18319	6005	3303	4324	4504
	TCZ18320	6301	3466	4537	4726
	TCZ18321	6596	3628	4749	4947
	TCZ18322	6892	3791	4962	5169
	TCZ18323	7187	3953	5175	5390
	TCZ18324	7483	4116	5388	5612
	TCZ18325	7778	4278	5600	5834
	TCZ18326	8074	4441	5813	6056
19.2	TCZ19214	5017	2759	3612	3763
	TCZ19215	5343	2939	3847	4007
	TCZ19216	5669	3118	4082	4252
	TCZ19217	5995	3297	4316	4496
	TCZ19218	6321	3477	4551	4741
	TCZ19219	6647	3656	4786	4985
	TCZ19220	6973	3835	5021	5230
	TCZ19221	7299	4014	5255	5474
	TCZ19222	7625	4194	5490	5719
	TCZ19223	7951	4373	5725	5963
	TCZ19224	8278	4553	5960	6209
	TCZ19225	8604	4732	6195	6453
	TCZ19226	8930	4912	6430	6698
	TCZ19227	9256	5091	6664	6942
20.1	TCZ20115	5880	3234	4234	4410
	TCZ20116	6238	3431	4491	4679
	TCZ20117	6596	3628	4749	4947
	TCZ20118	6954	3825	5007	5216
	TCZ20119	7311	4021	5264	5483
	TCZ20120	7669	4218	5522	5752
	TCZ20121	8026	4414	5779	6020
	TCZ20122	8384	4611	6036	6288
	TCZ20123	8742	4808	6294	6557
	TCZ20124	9099	5004	6551	6824
	TCZ20125	9457	5201	6809	7093
	TCZ20126	9814	5398	7066	7361
	TCZ20127	10172	5595	7324	7629
	TCZ20128	10530	5792	7582	7898
21	TCZ02115	6596	3628	4749	4947
	TCZ02116	6987	3843	5031	5240
	TCZ02117	7378	4058	5312	5534
	TCZ02118	7769	4273	5594	5827
	TCZ02119	8160	4488	5875	6120
	TCZ02120	8551	4703	6157	6413
	TCZ02121	8942	4918	6438	6707
	TCZ02122	9333	5133	6720	7000
	TCZ02123	9724	5348	7001	7293
	TCZ02124	10115	5563	7283	7586
	TCZ02125	10506	5778	7564	7880
	TCZ02126	10897	5993	7846	8173
	TCZ02127	11288	6208	8127	8466
	TCZ02128	11679	6423	8409	8759
22	TCZ02215	7215	3968	5195	5411
	TCZ02216	7641	4203	5502	5731
	TCZ02217	8076	4442	5815	6057
	TCZ02218	8493	4671	6115	6370
	TCZ02219	8919	4905	6422	6689
	TCZ02220	9345	5140	6728	7009
	TCZ02221	9771	5374	7035	7328
	TCZ02222	10197	5608	7342	7648
	TCZ02223	10623	5843	7649	7967
	TCZ02224	11049	6077	7955	8287
	TCZ02225	11475	6311	8262	8606
	TCZ02226	11901	6546	8569	8926
	TCZ02227	12327	6780	8875	9245
	TCZ02228	12753	7014	9182	9565
22.9	TCZ22915	7867	4327	5664	5900
	TCZ22916	8329	4581	5997	6247
	TCZ22917	8791	4835	6330	6593
	TCZ22918	9253	5089	6662	6940
	TCZ22919	9715	5343	6995	7286
	TCZ22920	10177	5597	7327	7633
	TCZ22921	10639	5851	7660	7979
	TCZ22922	11101	6106	7993	8326
	TCZ22923	11563	6360	8325	8672
	TCZ22924	12025	6614	8658	9019
	TCZ22925	12487	6868	8991	9365
	TCZ22926	12949	7122	9323	9712
	TCZ22927	13411	7376	9656	10058
	TCZ22928	13873	7630	9989	10405
23.8	TCZ23817	9535	5244	6865	7151
	TCZ23818	10034	5519	7224	7526
	TCZ23819	10534	5794	7584	7901
	TCZ23820	11034	6069	7944	8276
	TCZ23821	11533	6343	8304	8650
	TCZ23822	12033	6618	8664	9025
	TCZ23823	12533	6893	9024	9400
	TCZ23824	13032	7168	9383	9774
	TCZ23825	13532	7443	9743	10149
	TCZ23826	14032	7718	10103	10524
	TCZ23827	14532	7993	10463	10899
	TCZ23828	15032	8268	10823	11274
27.5	TCZ27518	13572	7465	9772	10179
	TCZ27519	14290	7860	10289	10718
	TCZ27520	15009	8255	10806	11257
	TCZ27521	15728	8650	11324	11796
	TCZ27522	16447	9046	11842	12335
	TCZ27523	17166	9441	12360	12875
	TCZ27524	17884	9836	12876	13413
	TCZ27525	18603	10232	13394	13952
	TCZ27526	19322	10627	13912	14492
	TCZ27527	20041	11023	14430	15031
	TCZ27528	20760	11418	14947	15570

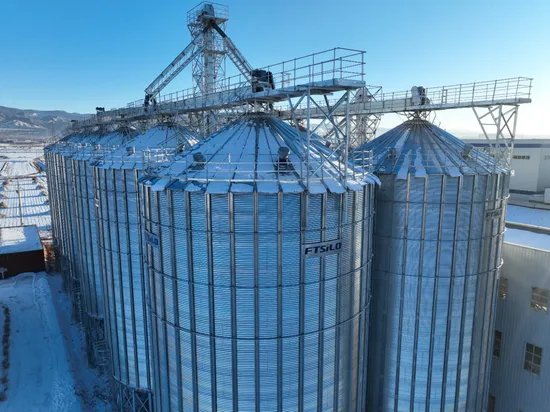

Detailed Photos

Company Profile

Dongying Fengtu Intelligent Storage Co.,Ltd
Dongying Fengtu Intelligent Storage Co.,Ltd was founded in 2017,we are the suppier of the overall solution for professional intelligent storage system.Our company professionally supply solutions of storage,grain drying,conveyer system for areas such as agriculture,grain and oil,food,forage,wine,bioenery,port logistics etc.Fengtu egineering team have decades of experience in steel silo design and manufacturing,and will provide you with a comprehensive.One stop,grain storage solution.Fengtu services product R&D,manufacturing,sales,engineering contracting,technical consulting.
Exhibition
Certifications
FAQ
1. who are we? We are based in Shandong, China, start from 2017,sell to Africa(50.00%),Domestic Market(18.00%),South
America(10.00%),Southeast Asia(10.00%),Mid East(10.00%),North America(2.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
Grain Silo,Grain Dryer,Grain Conveying System,Water Tank
4. why should you buy from us not from other suppliers?
Dongying Fengtu Intelligent Storage Co., Ltd. is a family-owned manufacturer of grain silos and dryers, material handling
equipment and pre-engineered metal buildings.We have been in this line since 2001, nearly 20 years of experience design andproduction.

---
