Customization Separation Equipment Industrial Centrifugal Filters for Solid Liquid Separation

Product Description

Customization separation equipment industrial centrifugal filters for solid liquid separation
Product Description
The plate filter centrifuge is a filter centrifuge operated intermittently by manual unloading.The machine has the advantages of simple structure, easy operation, strong adaptability, flexible filtering time according to material characteristics and separation requirements, fully washing of filter residue, and not easy to be destroyed by solid particles.Can be widely used in chemical, light industry, food, textile and other industries.
Main Features
Reasonable structure design, simple geometric shapes which can eliminate the health corners effectively, structural parts smooth transition, the surface polished. External components, fasteners and the parts contacting material are made of stainless steel, the shell is clam shell type, which can thoroughly clean the inter-layer between shell and bowl.

Base is the flat structure, reducing the machine center of gravity, small size, the shell and base is overall welded form, high bearing's strength. Configuration of liquid rubber damper to reduce vibration,which can realize installation without basing.Shell is clam shell model with a large or small, cover with feed tube, washing pipe, sight mirror, light mirror and spray systems, it is also equipped with nitrogen protective devices to isolate the machine chamber and outside air.

Belt drive eliminates the potential dust, inverter start smoothly, dynamic braking, the whole machine is good sealing performance, anti-explosion, can be applied to toxic and flammable, explosive situation.
Working Principle
The PS Series Flat Direct filtration centrifuge's bowl is based parts, direct-coupled motor drives the bowl rotate at high speed to form a centrifugal force field. Suspension liquid flow into the bowl from the top of the feeding tube, under the action of centrifugal force, threw to the drum wall, then into the inter-layer between shell and bowl through the filter holes in the bowl, next, threw into the liquid collection chamber at the bottom of machine, discharged by the drain pipe, and solid phase retained in the bowl, For washing, the washing water through the washing tube to wash, solid phase is discharged from the top by hand.
Product Parameters

* Note:Size and weight is for direct connection type.

Application
The plate filter centrifuge is a equipment that uses the principle of centrifugation to separate particles in a suspension from the liquid. It is widely used in fields such as chemical engineering, food, industry, and agriculture.
Solid liquid separation: Plate type filtration centrifuges can be used for various industrial solid-liquid separation, such as the removal of solid suspended solids in mineral water production and solid-liquid separation after chemical reactions.
Particle recycling: The flat filter centrifuge can be used to recycle solid particles generated during the production process, improving product quality and production efficiency.
Concentration and dehydration: Plate type filtration centrifuges can be used for concentration and dehydration treatment, such as pulp dewatering, sludge dewatering, etc.
Fine material separation: Plate filter centrifuges can be used for the separation of fine materials, such as the preparation of high-purity chemicals and the production of ultrafine powders.

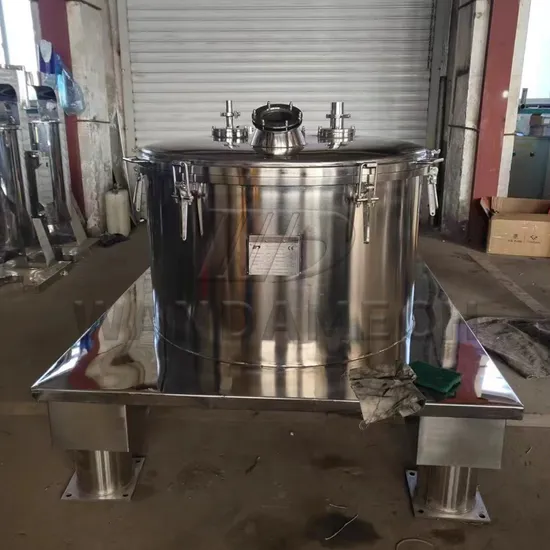

Detailed Photos
Company Profile
LIAOYANG WANDA MACHINERY CO.,LTD specializes in R&D, manufacturing, operation, export and related services of various types of industrial centrifuge machines, drying equipment, mixer machines, crushers, granulation machines, packing machines etc. The production base is located in Liaoyang City, Liaoning Province, China. Our mechanical equipment products can be widely used in food, chemical, petrochemical, light industry, heavy industry, printing and dyeing industry, feed industry, fertilizer industry,high-tech industry, etc., has been widely welcomed and praised.
Wanda Machinery not only has a group of capable engineers and senior management personnel with more than ten years of work experience, but also has a group of excellent production personnel. They have excellent capabilities in research, design, service, etc. Over the years, they have devoted themselves to researching and summing up in practice. "Pragmatism, innovation, integrity, pursuit of excellence", a deep understanding is a strong guarantee for the quality of customers' products!
Looking to the future with a commitment to design innovation and quality products, supported by an outstanding level of customer service. The excellent quality machinery can be easily obtained from us because we maintain the quality and standard of our products from incoming raw materials to the finished products.
We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present :
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer's cost.
FAQ
1. What data is required to confirm the model?
(1) Materials to be dried (2) Treatment capacity per hour (3) Solid content percentage
2. What certificates do you have?
We can provide CE, ISO 9001, etc
3. What is the warranty period of the equipment?
Normally 1 year warranty
4. Can we visit your factory?
Sure, we sincerely invite you to visit
5. Can we bring our own materials to your factory for experiments?
Sure, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site.
6. Can it be customized?
Sure, our equipment can be customized according to the actual requirements of customers.
7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site

---
