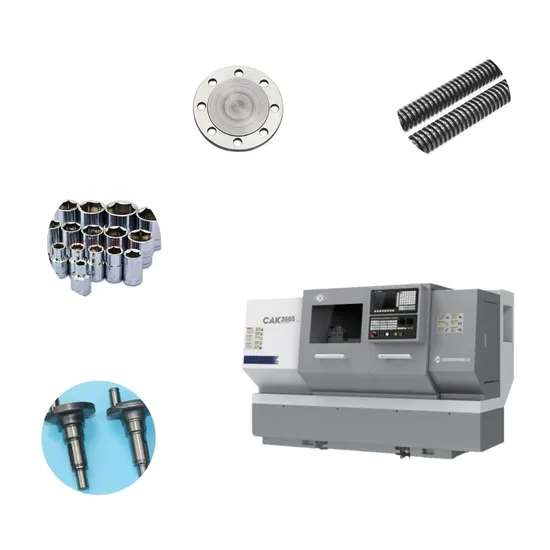

High Performance Cak3665 Cak40series China Smtcl CNC Lathe for Metal-Cutting

Product Description

Features:
CAK series continues features and construction from last generation, improved precision, anti-vibration, functions and stability ,new looking design has a better water-proof.
No travel switch on two axis, low fault;T-groove reinforce structure of tailstock, increase stability; super large water tank , enhancing the waterproof ability of the whole machine.

Item	Unit	CAK3665	CAK4065	CAK4085		CAK4085P
Max part length	mm	750	750	1000	1000	920
Max cutting length	mm	650	650	850	850	770
Max swing diameter over bed	mm	Φ400	Φ400	Φ400	Φ400	Φ320
Max swing diameter over slide	mm	Φ180	Φ200	Φ200	Φ200	Φ200
Max cutting diameter	mm	Φ360	Φ400	Φ400	Φ400	Φ320
Spindle nose type		A2-6	A1-6	A1-6	A1-6	A1-6
Chuck diameter	mm	200	250	250	250	250
Spindle bore	mm	Φ53
Single spindle speed range	r/min	100-3000	100-2400	100-2400		100-2400
Spindle speed range(manual stepless)	r/min				100-2000
Rated power of main motor	kw	7.5(Main servo motor)
Tailstock quill diameter	mm	Φ60
Tailstock quill travel	mm	140
Turret type		Vertical 4 positions	Horizontal 6 positions	Vertical 4 positions	Vertical 4 positions	Horizontal 6 positions
Tool shank size	mm	20x20
X/Z axis rapid traverse	m/min	6/12
Machining accuracy		IT6~IT7
Machine net weight	kg	1860	1860	1960	1960	1960
Overall dimension(LxWxH)	mm	2350X1500X1580		2470X1500X1580

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
