Convenient Use Standard 350L Portable Diesel Concrete Mixer

Product Description

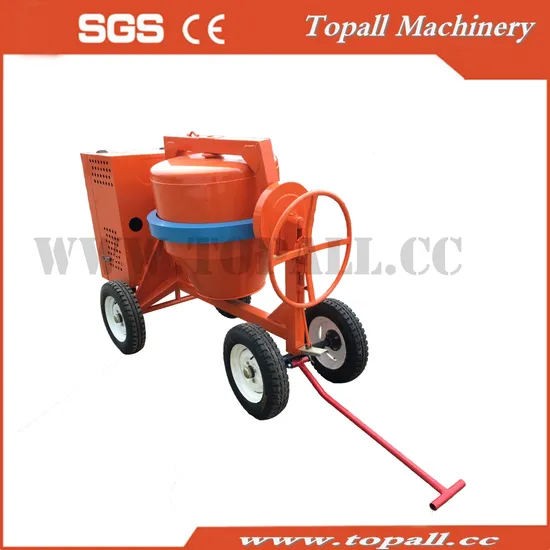

350L Concrete Mixer From Topall Machinery Factory .
Model : Portable Concrete Mixer TDCM350

Advantages
1.Hand-fed concrete mixers from 120 litres mixed batch output
2.All models capable of mixing at a rate of 25 batches per hour giving production output rates ranging from 3 per hour
3.Robustly engineered with fully enclosed drivelines, Topmac mixers provide safe, reliable performance and long service life
4.Positive, heavy duty driveline using Belt driver; bevel wheel and pinion.
5.Highly efficient, two piece heavy gauge, steel drum
6.Multi-position lockable drum
7.Fast Tow trailer models available with adjustable towbar, pneumatic tyres, mudguards and independent suspension
9.Topmac mixers for sale in the CE marked
10.Topmac is an ISO 9001 accredited company
11.Efficient after sales spares service through Topmac 'S Worldwide Distributor Network
Paratament

Model	TDCM350
Drive System	V-Belt
Dump Type	Manual
Discharge Height	18 Inch/480mm
Drum Type	Steel
Tire Size(Opation)	Steel or 4.50-12
Frame Type	Tubular
Paint Type	Powder coat
Power Source	Electrol Motor ; Gasoline Engine or Diesel Engine
Drum Capacity	11 cu. Ft/350L/ 1 bags
Drum Opening	30Inch/760mm
Drum Depth	32inch/800mm
Overall Length	79inch/2010mm
Overall Width	40inch/1031mm
Overall Height	56inch/1413mm
Operating Weight	215kg/Steel ,228kg/Two Tire , 245kg/ Four Tire

Shipping, Delivery and Maintenance

40' container can be loaded with	36 Unit
Delivery time	4 weeks after confirmation of the order
