CNC Vertical Machine Center

Product Description

VM650L 3 axis linear guide vertical CNC machining
1.The machine adopts CAD / CAM optimization design, It is of wide body,wide vertical column structure, high quality cast iron casting, many artificial aging treatment, strong absorption of shock, the overall rigid excellent.
2.Y shaft is supported by four rigid rail, which improves the overall rigidity and machining performance of the machine tool.
3.Imported BT50 spindle, so that the machine has excellent processing performance.
4 Fully enclosed electric cabinet, supplemented by air circulation design, dust, ventilation, cooling effect is good.
Product show
Specification

Item	Parameter	VM650L
Travel	X axis	600mm
	Y axis	500mm
	Z axis	500mm
	Distance from spindle end to table	150-650mm
	Distance from spindle center to column	558mm
Guide form	X/Y/Z axis	linear rail/linear rail/hard rail
Work table	area	500*850mm
	max load	300kg
	T slot (No*Width)	3*18mm
Spindle	speed	8000rpm
	taper	BT-40
	power	5.5/7.5kw
Three axis feed	X, Y axis rapid feed	24/24mm/min
	Z axis rapid feed	12mm/min
	triaxial cutting feed	1-5000mm/min
	X, Y axis motor power	1.8/1.8kw
	Z axis motor power	1.8kw

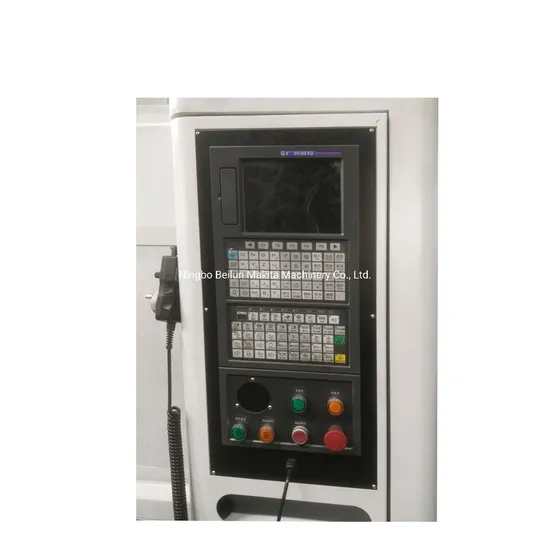

Controller	Optional	Mitsubishim70A,70B/FANUC 0I MATE MD/SYNTEC
Pressure		≥6kg/ square centimetre
Accuracy	positioning accuracy	±0.008mm
	repeat positioning accuracy	±0.004mm
Weight Size	Machine weight	3800/4000kg
	Outline dimension(L*W*H)	2200*2000*2000mm

Our Company

Makita Machinery Co., Ltd. was founded in the south wing of the Yangtze River Delta, Ningbo Beilun Development Zone, and the creation of "Makita" brand. Enterprise has a group of experts from Japan and China after the reform and develop a deeper knowledge of the machine honed technical team, in the tradition of Japanese machine tool manufacturer century technology, innovation, doing fine and stronger.
Follow the national Thirty-five year plan for higher goals China's equipment manufacturing industry proposed by the company in due course of potential, have developed products are gang tools series, turret series slant bed precision CNC lathe ,with C-axis,Y-axis function turning centers; stand-alone automated robotic combination of CNC lathes; and for customers tailored, flexible production line network intelligence.
Enterprise integration " One Belt and One Road " strategy into a strong force, through 2014 to 2015 two years of efforts the company successfully design and production or transformation of a number of intelligent, unmanned production lines for many Japanese-funded enterprises. Enterprises regard quality as the life ,carefully crafted ,strictly internal control have passed the ISO9001 quality management system certification, CE certification machinery products, we have obtained total of 100 patents including multiple invention patents.
Thanks to long-term and friendly cooperation enthusiasm throughout the new and old customers at domestic and overseas in recent years, the company's business booming, the products sold throughout the country and exported to Europe, America, Southeast Asia, the Middle East and other countries, to obtain the customer's praise.
Packing & Delivery
Packing Details : International Heat Treatment Standard Export Wooden Package.
workbench and the guide surface rust-proof oil daub, and oil film paper cover.
Delivery Details : 15-60 days after PI confirmed and deposite received.
Quanlity& Honor
Exhibition photos

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Beilun makita machinery is a brother manufacture as shunfa,haishun and haihao company.In fact,we do export from 2008 under haishun company, our goods are very polupare to all over the world.We believe that a brighter further is waiting for us.

Q: How long is your delivery time?
A: Generally it is 15-60 days ,it is according to different machine model and different configuration and order quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. Also we would like to do LC at sight.

Q: Where is your factory located ? How can I visit there ?
A: We are located in Ningbo City. Which is only 2 hours' away from Shanghai by train.
Also you can fly to Ningbo Airport, it is only 1 hour and we will pick up you.

---
