US$15,000.00-60,000.00
|
1 Set
(MOQ)
|
Basic Info.
Main Material
Q235B Q335b
Mixing Capacity
1125L/1800kg
Safety Features
Key Security Control Device
Solenoid Valve Voltage
DC 24V
Proximity Switch Voltage
DC 24V
Independent Hydraulic Unit Power
2.2kw
Transport Package
Film Wrapped and Bare Packed
Production Capacity
30000sets/Year
Product Description
Product Introduction

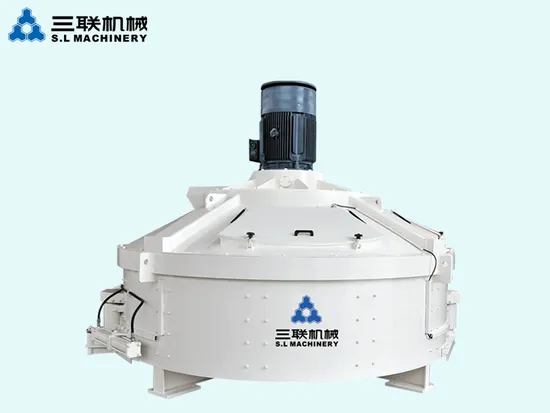

MPC750 Vertical Shaft Planetary Mixer
Mixing Running Track Diagram:The following figure shows the mixing motion track from 6s to 60s after feeding. Every four turns (6s) can completely cover the bottom plate of the mixer without any dead area.
Features:
Complicated stirring motion track,strong stirring motion,uniform stirring,high efficiency,convenient maintenance and the cleaning. Application:
It is especially suitable for high-end cement products such as sponge permeable ecological brick and PC imitation stone landscape brick on the market. Technical Parameters
| Item | MPC | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 |
| Filling Volume | L | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 |
| Filling Capacity | kg | 120 | 240 | 360 | 600 | 790 | 1200 | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7200 |
| Output Volume | L | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 |
| Mixing Power | Kw | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 |
| Planetary Mixing Blade | Qty | 1×2 | 1×2 | 1×2 | 1×2 | 1×2 | 1×2 | 1×3 | 2×2 | 2×2 | 2×2 | 3×2 | 3×3 | 3×3 |
(Side Scraper/ Discharge Scraper) | Qty | 1/- | 1/- | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/2 | 1/2 | 1/2 |
| Discharging Power | Kw | Hydraulic Discharging | 3 | 3 | 3 | 4 | 4 | 4 |
| Mixing Hopper Diameter | mm | 750 | 1000 | 1300 | 1300 | 1600 | 1900 | 2200 | 2500 | 2800 | 2800 | 3100 | 3400 | 3400 |
| Weight | kg | 500 | 850 | 1300 | 1500 | 2200 | 2500 | 3500 | 5500 | 6000 | 6500 | 8500 | 10500 | 11000 |
| Note: As we continue to improve and improve the performance of our equipment, the parameters are subject to the actual equipment. |
Mixer Details Display
Transmission Device
The specially developed reduction box can effectively distribute the power to each mixing device in a balanced manner, ensuring the mixer operates efficiently and with low noise.Inspection Door
The large inspection door allows for easy inspection and cleaning. The key safety control ensures that the mixer will not be started accidentally during inspection.Hydraulic Discharging Device
The hydraulic discharging system is equipped with a manual door opening device, which can be opened manually in the event of a power outage.Discharge Door
The discharge door is equipped with a limit switch, which can conveniently set the door opening size according to needs. Three discharge doors can be opened.Mixer Interior Display
The specially designed mixing device makes the mixing speed faster, the mixing is more uniform, and there is no pile phenomenon.
>>
