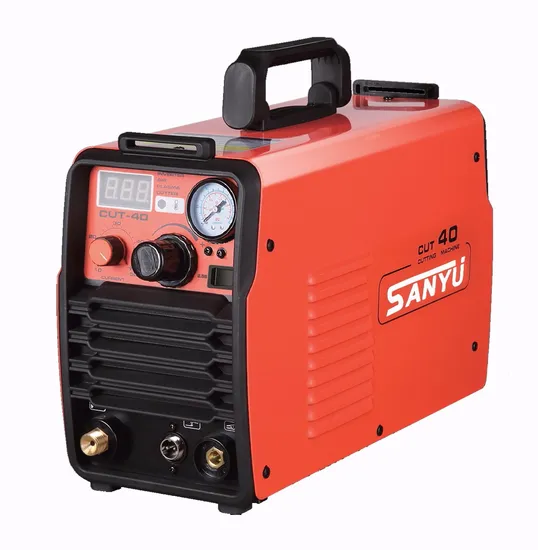

Sanyu Cutting Machine High Frequency Plasma Cutter Portable Cutter

Product Description

High frequency Compared with oxy-cutting,cutting capacity increased 2 times higher in cutting speed Suitable metal sheet can be cut easily and quickly Suitable for cutting stainless steel,copper,iron and aluminum etc. Simple operation and smooth cutting surface Less damage to the torch tips Supplied complete with plasma cutting torch and earth clamp,reducing valve and carton box Product parameters

Model		CUT-40	CUT-50
power supply voltage		230±10%	230±10%
rated input capacity		6	8
frequency		35	35
rated input current		27	34
cutting current range		20-40	20-50
polit current		/	/
duty cycle(40ºC 10min)		40%	40%
no load voltage		250	250
max cutting thickness		10mm	15mm
cutting thickness	carbon steel	8mm	12mm
	stainless steel	8mm	10mm
	copper	6mm	8mm
	aluminum	5mm	6mm
IP		IP21S	IP21S
insulation class		F	F
cooling way		FAN&AIR	FAN&AIR
dimension		370*153*260	370*153*260
net weight		6.5	7

---
