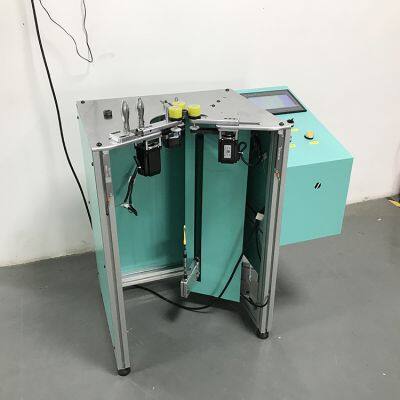

HY-R27 Electric intelligent magnetic ring hook wire winding machine

Product Details

Product Description

Product Description
Electric intelligent magnetic ring crochet machine
HY-R27 Electric intelligent magnetic ring hook wire winding machine
Equipment description:
1. The 750w servo motor with planetary reducer hook line speed is fast while compatible with hook 3.0 line two can hook line
2. Controlled by PLC, the system is equipped with a 7-inch touch screen, which makes adjustment faster and parameters easy to save.
3. Three sets of 57 stepper motors drive the wiring wheel for wiring, so that the Angle of wiring is accurate; Speed, rotation Angle can be adjusted, positive and negative switch freely, easy to operate;
4. Equipped with leakage hook detection function to improve the efficiency of personnel operation number of accurate system with detection number of turns
5 The system can set multi-section winding method. The number of turns and Angle of each section can be set separately to effectively improve the winding efficiency of personnel
Electric intelligent magnetic ring inductance crochet ring winding machine

Wire diameter	0.3-3.5mm
power supply	AC220V/50HZ
Inner diameter range	Depends on crochet size
Start method	power-driven
Winding method	Electric Crochet Winding
Total power	1150W
Model	HY-R17
Finished outer diameter	27mm-80mm
Machine Size (mm)	L780 * W400 * H950
Machine weight	60kg

---
