Outdoor Fibre Optical ADSS Opgw GYTA53 4 6 12 24 48 Core Communication Underground Single Mode Fiber Optic Cable Price

Product Description

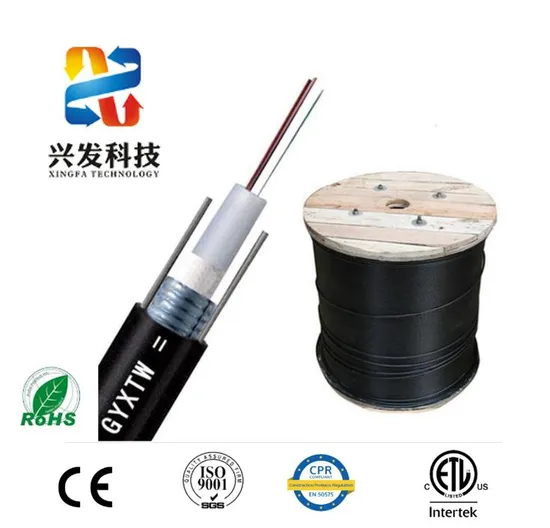

GYXTW Fiber Optical Cable

component: Optical fiber+Fiber gel+Corrugated steel-plastic tape+Steel wire strength member+PBT loose tube+ PE sheath (PS:Specifications can be customized according to customer requirements)


Product Description Technical specification

Structure		Unit	Parameter
Fiber count		Fibers	4	6	12	24
Loose tube		Material	PBT
		Fiber per Tube	4	6	12	24
		Diameter(mm)	2.0 ± 0.1	2.0 ± 0.1	2.0 ± 0.1	2.6 ± 0.1
Increase Strength		Material	Two Parallel steel wire
steel wire		Diameter(mm)	1.0mm	1.0mm	1.0mm	1.0mm
Outer Sheath		Material	PE
		Thickness (nominal*)	2.5 ± 0.1	2.5 ± 0.1	2.5 ± 0.1	2.2 ± 0.1
Cable diameter (nominal**)		mm	8 ± 0.5
Cable Weight (Approx.)		Kg/km	73	73	73	89
Bending Radius	Dynamic	--	≥20×Cable Diameter
	Static	--	≥10×Cable Diameter
Operation temperature range		ºC	-40~+70
Installation temperature range		ºC	-20~+70
Transport and storage temperature range		ºC	-50~+80
Crush resistance		N	1000/10cm

Construction of cable
Fiber Color Code

No	1	2	3	4	5	6
Color	Blue	Orange	Green	Brown	Slate	White
No	7	8	9	10	11	12
Color	Red	Black	Yellow	Violet	Pink	Aqua

Packaging & Shipping GYXTW cable is coiled on Bakelite & wooden drum. 4000 meters sequential length in one reel.

FAQ 1.Are you the real manufacturer?
We are the real manufacturer with 15 year's history.

2.What's the MOQ?
The MOQ of Fiber Optic cable is 1km.

3.What's delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

4.How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.

5. Can you supply customized products and logo?
We supply OEM service. You can send us your drawing.

6.What's your payment terms?
T/T, L/C,it can be negotiated.

---
