Gear driven drill machine Z3050*16/1 new radial drilling machine

Product Description

Product Description
Z3050*16/1 New radial drilling machine main features:
1. The speed and feeding of machine have range of speed changes can be operated by motor, manual, and inching.
2. The feed can be easily switched on or off at any time.
3. The displacement error of the main shaft is small when it is loosened and clamped.
4. The speed change control mechanism is concentrated on the main shaft box which is convenient for operation and speed change.
5. The hydraulic power realizes the clamping of each part and the speed change of the main shaft which is sensitive and reliable.
6. The parts of the main shaft set are made of special high-quality steel, and the world-class heat treatment equipment is used to ensure the high strength and wear resistance of the machine tool;
7. The main gears are processed by grinding to ensure the high precision and low noise of the machine tool.

Specification	Z3050X16/1
Max. drilling dia.	50mm
Distance between spindle axis and column	350-1600mm
Distance from spindle nose and working surface of base	320-1220mm
Diameter of column	350mm
Spindle travel	315mm
Spindle taper	MT5
Spindle speed	25-2000rpm
Number of spindle speed	16 steps
Range spindle feed	0.04-3.20mm/r
Number of spindle feed	16 steps
Distance of head horizontal movement	1250mm
Table size	630x500x500mm
Base size	2400x1000x200mm
Main motor power	4kw
Overall size	2500X1060X2650mm
Packing size(LxWxH)	2600x1120x2550mm
N.w/G.w	3400/3650kg

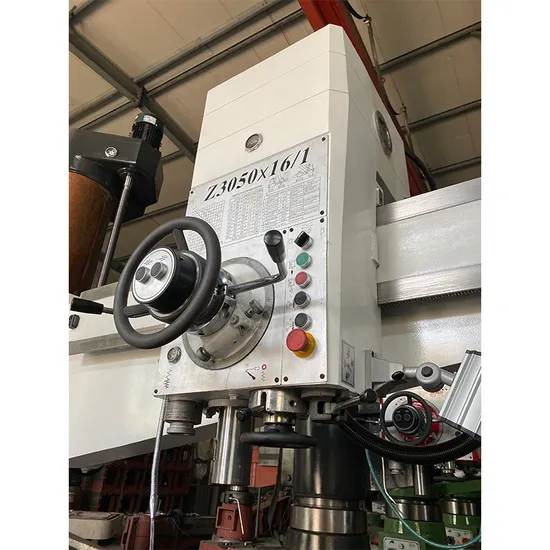

Detailed Images


Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
