Product Details
Product Description
Product Description
Ss35/Ss36 sleeper screw with sdu25 screw dowel
Kunshan Signum Machinery Technology Co., Ltd. specialise in manufacturing railway coach screws and spikes according to GB/DIN/Jis/AREMA standards and our customer's specific requirements.This includes custom length, thread, material, grade and finish.
The Ss35 screw spike is a type of threaded fastener specifically designed for rail track applications. It consists of a high-strength steel body with a square or hexagonal head for easy installation and removal.
The primary function of an Ss35 sleeper screw is to securely attach the rail to the sleeper, ensuring the track remains stable and aligned under heavy loads and various environmental conditions.
Ss35 sleeper screws come in various sizes and lengths, with thread profiles, and head types to suit different track configurations and sleeper materials. They may be used with wooden sleepers directly or with plastic ferrules cast into concrete sleepers.
Ss series railway sleeper screws, also known as rail screws or sleeper screws, are threaded fasteners specifically designed to fix rails to sleepers (or railroad ties) in railway track construction. They are a type of screw spike and are commonly used for fastening tie plates or directly fixing rails to wooden or concrete sleepers.
The Ss series includes various models like Ss5, Ss8, Ss23, Ss25, and Ss35, each with specific dimensions and characteristics.
No.
| Product Name
| Specification
| Material
| Surface
| Standard
|
1
| Fishtail Bolt
| M8-M64
| Q235,45#,
55#,etc
| Zinc,Plain, Black Oil
| UIC,AREMA,JIS,GB or according to your requests.
|
2
| Screw Spike
| Square Head Screw Spike
| M16-M22 *145-200
|
Hexagon Head Screw Spike
|
Other Types
|
|
| Type
| Specification
| Weight/kg
| Surface
| Standard
|
3
| Sleeper Screw
| Ss 1/130
| M22*130
| 0.451
| Zinc,Plain, Black Oil
| UIC,AREMA,JIS,GB or according to your requests.
|
Ss 1/150
| M22*150
| 0.478
|
Ss 2/180
| M22*180
| 0.595
|
Ss 5/150
| M24*150
| 0.545
|
Ss 6/130
| M26*130
| 0.658
|
Ss 6/150
| M26*150
| 0.702
|
Ss 6/170
| M26*170
| 0.785
|
Ss 7/180
| M24*180
| 0.636
|
Ss 8/140
| M24*140
| 0.528
|
Ss 8/150
| M24*150
| 0.548
|
Ss 8/160
| M24*160
| 0.568
|
Ss 23/160
| M23*160
| 0.645
|
Ss 24/165
| M24*165
| 0.59
|
Ss 25/165
| M25*165
| 0.625
|

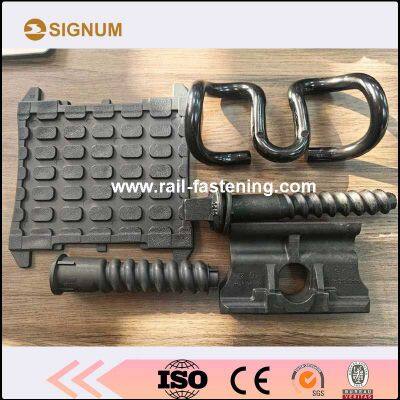

As a reliable steel rail and railway fastening products supplier, Signum Rail has a large selection of steel rails and railway fasteners to meet your needs: Steel Rail, Rail Clip, Rail Fishplate(Joint Bar), Rail Base Plate, Rail Pad, Screw Spike, Rail Clamps, Rail Anchors, Rail Insulators,Rail Turnout, Wagons, etc.
Our steel rails and rail fasteners can be used in a variety of scenarios, including railroad constructions, mining sites, heavy industries, overhead cranes, railroad and tunneling industries, transit authorities, subway, passenger railway and operators of port facilities, etc.
>>
