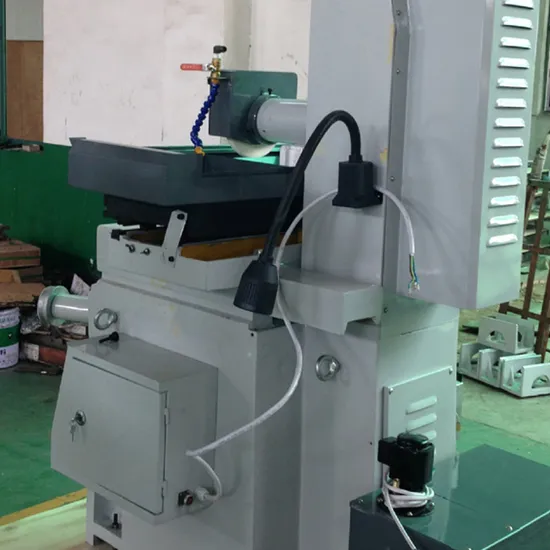

Hot Sale China Manufacturers High Quality Precision Metal Manual Valve Surface Grinder Machine M1022

Product Description

MANUAL SURFACE GRINDER FEATURES:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.
3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.
4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.
5. No vibration, low noise motor spindle.
6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.
SPECIFICATIONS:

MODEL				M1022
Working table	Table Size (L× W)		mm	540×250
	Max movement of working table(L× W)		mm	560×260
	T -Slot number×width		mm	1×14
Grinding head	Max distance from spindle center to table surface		mm	420
	Wheel Size(Outer diameter×width×Inner diameter)		mm	φ200×20×Φ31.75
	Wheel speed	50HZ	r/min	2850
		60HZ		3360
Feed amount	Vertical feed on handwheel	Per revolution	mm	4.0
		Per graduation	mm	0.02
	Cross feed on handwheel	Per revolution	mm	1.25
		Per graduation	mm	0.01
Motor power	Spindle motor		kw	1.5
	Coolant pump motor		w	40
Working precision	The parallelism of working surface to base level		mm	300:0.005
	Surface roughness		μm	Ra0.32
Weight	Net		kg	850
	Gross		kg	950
Overall dimension(L×W×H)			mm	1680x1220x1720
Package dimension(L×W×H)			mm	1200x1400x1940

---
