Waste Plastic Recycling Small Double Shaft Shredding Machine

Product Description

Product Description

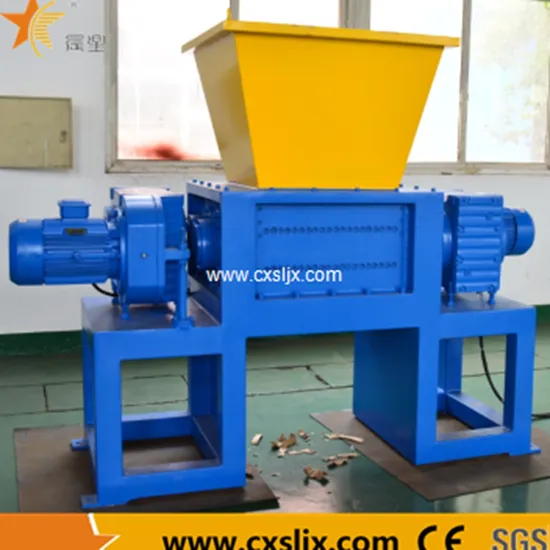

Small double shaft shredding machine, shredder for lab usage
Futures:
1. Thick and heavy knife, crushing efficiency, fixed knife and rotating knife are made of alloy steel casting, it's solid and long service life.
2. Thick iron frame plate can be resistant to high torque, very strong.
3. Easy to be adjusted, low maintenance costs, economic and durable, the device low speed, high torque, low noise and so on.
4. Using microcomputer (PLC) automatic control, set start, stop, reverse and overload automatic reverse control.
5. The unit capacity is the theoretical calculation output, prefer to practice, as it's maybe various because of the actual density and shape of broken objects.
It is suitable for shredding large, thick and hard materials, such as automobile shell, solid industrial waste, medical trash, electronic trash, plastic bucket, plastic box, plastic bottle, metal can, metal barrel, woven bag, Refrigerators, circuit boards and cartons and other materials.
Product Parameters

Technical parameters:

No.	item	description
1	model	XD600
2	Suitable material	Carton box, electronic trash, plastic bucket and boar, and metail can, metail barel, woven bag, plastic bottles etc.
3	Feeding mouth	600*480 mm
5	Diameter of knife	285 mm
6	speed	15-23 rpm
7	Material of knife	Cr12MoV
8	Thickness of knife	30mm
9	Hardness of knife	HRC50-55 (adjust according to customer shredding material)
10	Quantity of rotating knife	20 PCS
11	Plate thickness of machine	30 mm
12	Material of steel plate	Q345B
13	Material of Frame base	Q235B
14	Main motor power	7.5kw+7.5kw (380V 50Hz 3Ph)
15	capacity	300-500 kg /hr
16	Net weight of machine	2000kg
Electrical details
17	Protection program of motor		TP44
18	Motor		China famous brand Redsun
19	Noise class		<75 DB
20	Gearbox		China famous brand Redsun
21	bearing		China famous brand bearing
22	PLC		famous brand Wuxi Xinjie PLC
23	Other electrical appliance		Schneider

Detailed Photos

---
