Professional Customization CNC Engraving and Cutting Machines with Saw Atc Router CNC Router for Woodworking with Best Services

Product Description

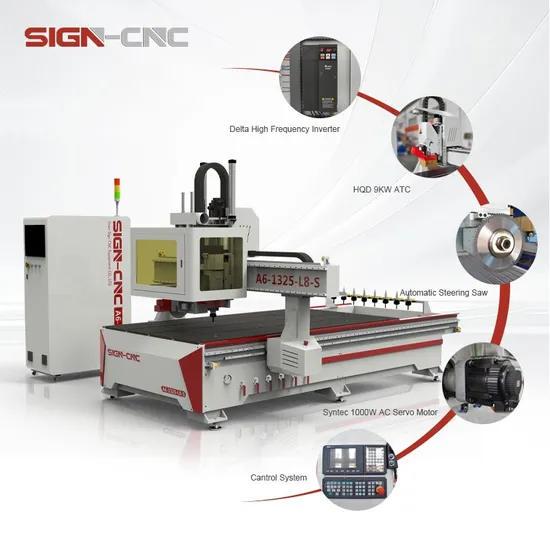

Sign CNC Multi Function Wood Atc CNC Router Machine with Saw
Application:
Wood furniture Industry, Furniture decoration, music instrument, wooden arts and crafts, large scale board engraving, solid wood furniture, solid wooden mural, composite door, free-paint door, cabinet doors, advertising industry, Die industry, Relief sculpture, toy production, bedside cupboard, screen sculpture etc.
Materials:
Woods, acrylics, artificial stones, artificial marble, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
Technical Parameters:

Model	A6-1325-L8-S	A6-1530-L8-S	A6-2030-L8-S
Working area	1300*2500mm	1500*3000mm	2000*3000mm
Z feeding	300mm
Frame structure	Steel casting-welding
Type of table	Vacuum table with T-slot and 5.5kw vacuum pump
Z axis transmission	Ball screw and 25 square guide rails
X Y axis transmission	TBI / Hiwin 25 square guide rails + rack
Max. Rapid Travel Rate	33000mm/min
Max. Working Speed	25000mm/min
Command Code	G code * .u00 * .mmg * .plt
Operating voltage	AC 380V/50Hz
Spindle power	HQD 9.0 KW
Tool Magazine	8 - 12
Type of cooling	Air cooling
Spindle Speeds	0-24000rpm/min
Drive motor type	850W servo motor
operating system	Taiwan SYNTEC 60WE
Dust Collector	With
Lubrication system	With
Saw	With
Supported software	Artcam software, Type3 software
Operating conditions	Humidity: 30% -75%, temperature: 15 - 45 degree
Warranty	Two year

Samples:
Payment methods:

MOQ	1 set
Port of loading	Qingdao, China. Other cities are ok
Time of delivery	15-25 working days after receiving payment
Payment methods	T/T in advance, 50% deposit, the balance should be paid before shipping

Payment methods:

MOQ	1 set
Port of loading	Qingdao, China. Other cities are ok
Time of delivery	15-25 working days after receiving payment
Payment methods	T/T in advance, 50% deposit, the balance should be paid before shipping

Package:
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case (The fumigation-free ), on the case top and bottom have steel tube for support. let it more strong to avoid damage during the transport and for long distance transportation.
Payment methods:

MOQ	1 set
Port of loading	Qingdao, China. Other cities are ok
Time of delivery	25 working days after receiving payment
Payment methods	T/T in advance, 50% deposit, the balance should be paid before shipping

FAQ
1. Q: How do you send your machine?
A: We can send our machines by sea, land and rail way, or we can send the machine to your doors.
2. Q: This is my first time to use this machine, is it easy to operate?
A: Machine operate is easy and we will send to you manual for system manual in English. And if you have question for use it we also can send to you video that show how to use machine.

---
