Cw6180*12000mm Manual High Precision Cutting Metal Heavy Lathe Machine with Quality

Product Description

Product Description

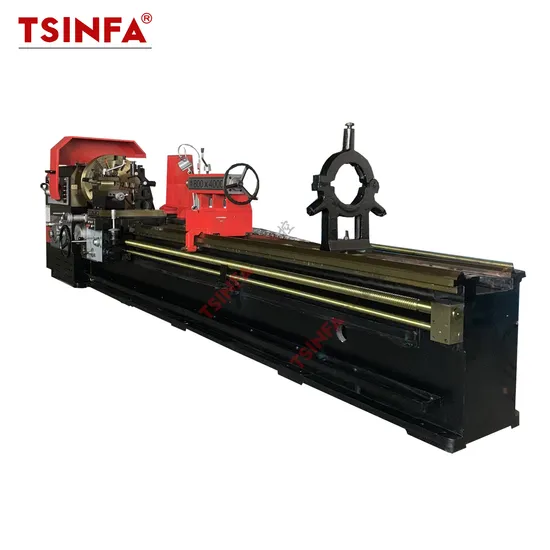

Horizontal Lathe Machine Heavy duty lathe CW6180 big bore 105mm for Cutting Metal
Product Parameters

tems	Unit	CW6163Q	CW6180Q	CW6180B
Swing over bed	mm	630	800	800
Swing over carriage/cross slide	mm	350	480	480
Swing over gap (Optional)	mm	800	1000	1000
Guide rail width	mm	550	550	600
Max. Weight of work piece	ton	2	2	2.5
Max. Length of work piece between two centers	mm	1500-15000
Spindle bore and nose head	mm	Φ105;A2-11
Taper spindle hole front cone and top	mm	φ120 , MT5
Spindle speed and range	r/min	18kinds; 7.5-1000	18kinds; 7.5-1000	18kinds; 5.4-720
Metric threads mm		1-240mm (50 kinds) with14 non-standard threads
Inch threads TPI		14-1 (26 kinds )
Module threads		0.5-120mm (53 kinds )
Diametric threads DP		28-1 (24kinds )
Steps and range of longitudinal feeds range	mm/r	64kinds; 0.05-24.3
Range 1:1	mm/r	0.1-1.52
Range 16:1	mm/r	1.6-24.3
Range of micro feed with change gear	mm/r	0.06-0.912
Longitudinal and cross feed rate		1/2
Rapid move speed of carriage	mm/min	4000
Max. Travel of lower knife slide	mm	420	500	500
Max. Travel of upper knife sllide	mm	200
Sleeve travel	mm	250
Tailstock sleeve taper		MT6#
Main motor power	kw	11
Rapid move motor power	kw	1.1
Coolant pump power	w	90

Detailed Photos
Certifications
Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers.
Packaging & Shipping
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .Q2: What's your main products of your company?
Products cover metal cutting machine and metal forming machine two categories. Metal cuttinging machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine.Q3: Where is our factory located? How can l visit there?Our factory is located in Tengzhou City , Shandong Province, 277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us.Q4. How do you transport it?Provide Transportation Solution DDP/CIF/FOB/FCAQ5: What's the Payment Terms ?T/T ,30% initial payment when order,70% balance payment before shipment .Q6: What's the MoQ?1 set .(Only some low cost machines will be more than 1 set )We want to know:1. We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible,
better to send us workpiece drawing, so that we can recommend you most suitable model!2. lf need ClF Price, please kindly tell us the port of destination.

---
