Electric/Gas Heating Rubber Plate Vulcanizing Mold Machine

Product Description

Electric/Gas Heating Rubber Plate Vulcanizing Mold Machine Technicial parameter:

Column Type:

Type	XLB-DQ400*400*2	XLB-DQ600*600*2	XLB-DQ750*750*2	XLB-DQ1200*1200*2	XLB-DQ1500*1500*2
Total pressure(MN)	0.50	1.00	3.00	3.15	8.0
Plate size(mm)	400x400	600x600	750x750	1200x1200	1500x1500
Working layer nuber	2	2	2(4)	2(4)	2(4)
Piston stroke(mm)	250	250	250(500)	250(500)	250(500)
Plate pressure(Mpa)	3.1	2.8	5.3	2.2	3.6
Motor power(kw)	2.2	3	5.5	5.5	5.5
Overall dimension (L*W*H)	2400*550*1500	1410*680*1750	1900*750*2200	1685*1320*2450	2750*2400*3600
Weight (kg)	1300	3500	8000	9500	22000

Frame Type:

Type	XLB-DQ1200*1200*2	XLB-DQ1200*2500*1	XLB-DQ1500*2000*1	XLB-DQ2000*3000*1	XLB-DQ1400*5700*1
Total pressure(MN)	3.15	7.50	10.00	18.00	28.00
Plate size(mm)	1200x1200	1200x2500	1500x2000	2000x3000	1400x5700
Working layer nuber	2	1	1	1	1
Piston stroke(mm)	400	400	400	400	400
Plate pressure(Mpa)	22	25	33.5	30	35
Motor power(kw)	5.5	9.5	11	26	55
Weight (kg)	9500	20000	33000	66000	140000

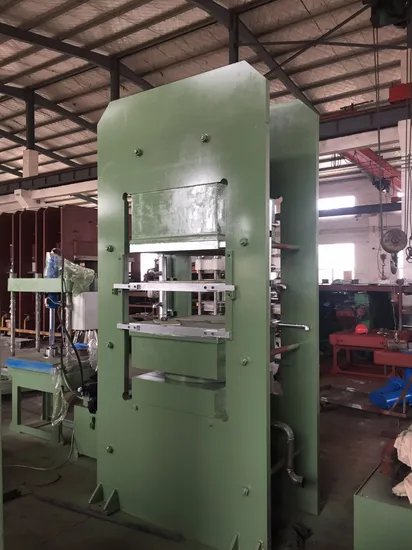

Machine Pictures:

---
