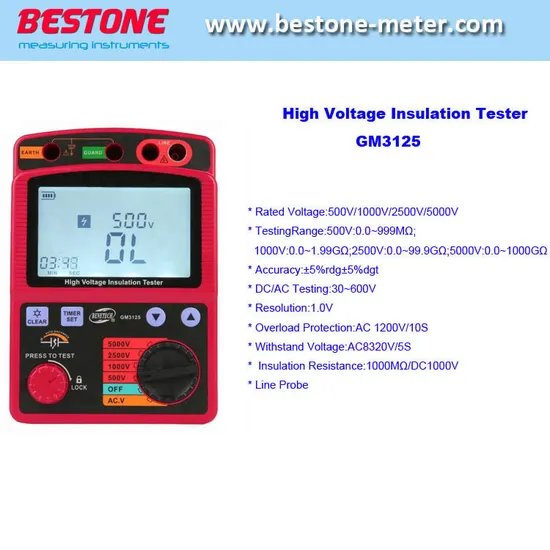

5000V High Voltage Insulation Resistance Tester Digital Ohm Meter

Product Description

Features:
* Professional Digital Voltage Insulation Tester
* Auto discharge function, operate more safely
* LCD backlight
* Auto power off, makes battery life longer
* Simultaneous dual display (only when measuring Insulation Resistance):
Selected Voltage range and Insulation Resistance measured reading
* Over-range indication for Insulation resitance & Voltage
* Over load protection
* Low battery indication, preserve accuracy and preciseness of every reading
* Design in accordance with IEC 61010-1 CAT. III 600V Type 2 and IEC 61010-031 international standards
* With CE marking, meets EU safety, health and environmental requirements
* Includes heavy-duty test leads and batteries
Specifications:
* Rated Voltage: 500V/1000V/2500V/5000V
* TestingRange: 500V: 0.0~999MΩ ; 1000V: 0.0~1.99GΩ ; 2500V: 0.0~99.9GΩ ; 5000V: 0.0~1000GΩ
* Accuracy: ± 5%rdg± 5%dgt
* DC/AC Testing: 30~600V
* Resolution: 1.0V
* Overload Protection: AC 1200V/10 sec
* Withstand Voltage: AC8320V/5 sec
* Insulation Resistance: 1000MΩ /DC1000V
* Line Probe
* USB Trasmission
* Short Circuit Current: 1.4mA
* Polarization Index
* DAR
* Operation Voltage: 12V
* Power: 8X1.5V LR14 Battery
* Unit size: 153X96X220mm
* Standard Quantity Per Carton: 3PCS
* Standard Carton Size: 44.5X33.0X28.5CM
* Standard Carton Gross Weight: 7.2KG
To make sure that there is no person on the measured equipment;
The wines must be placed apart not messed up togeter;
Discharge the equipment that is of large, capacitance, after test;
Calibrate the accuracy regularly

1. Insulation resistance tester
Rated voltage	500V	1000V	2500V	5000V
Test range	0.0~99.9MΩ 100~999MΩ	0.0~99.9 MΩ 100~999 MΩ 1.00~1.99GΩ	0.0~99.9 MΩ 100~999 MΩ 1.00~1.99GΩ 10.0~99.9GΩ	0.0~99.9 MΩ 100~999 MΩ 1.00~9.99GΩ 10.0~99.9GΩ 100~1000GΩ
Open circuit voltage	DC 500V +30%, -0%	DC 1000V +20% -0%	DC 2500V +20% -0%	DC 5000V +20% -0%
Rated current	0.5MΩloading 1mA~1.2mA	1MΩ loading 1mA~1.2mA	2.5MΩ loading 1mA~1.2mA	5MΩ loading 1mA~1.2mA
Short- circuit current		Approx. 1.3mA
Accuracy		±5%rdg±3dgt (0~99.9GΩ) ±20%rdg±3dgt (above 100GΩ)

2. Voltage tester 30~600V (Resolution 1V)
	DV		AV
Measuring range	±30~±600V		30~600V(50/60Hz)
Resolution	1V
Accuracy	±2%rdg±3dgt

3.Technology parameter
Technology parameter		Technology index
Display		Max. 999 counts LCD display (1000 counts only at 1T is displayed)
Over range indication		OL mark appears on insulation resistance range. LO mark appears on voltage's range.
Auto- ranging		Range shifts to upper range: 1000 count Range shifts to lower range: 95 counts (merely on the insulation resistance range)
Sample rate		0.5~ 10 times/sec
Operable altitude		Less than 2000m (Indoor use)
Operation circumstance		Temperature 0~40C, humidity <= 85%
Storage circumstance		Temperature -20~ 60C, humidity <= 90%
Overload protection		Insulation resistance : AC 1200V/ 10s Voltage : AC 720V/ 10 s
Voltage resistance		AC8320 (50/60Hz)/ 5 second (between electrical circuit and enclosure)
Insulation resistance		1000M of more/ DC 1000V (between electrical circuit and enclosure)
Power supply		DC12V (8x1.5V LR14 battery)
Battery's life		Approx. 15 hours
Dimension		153x 96x 220mm
Weight		1032g (without batteries and test wires)
