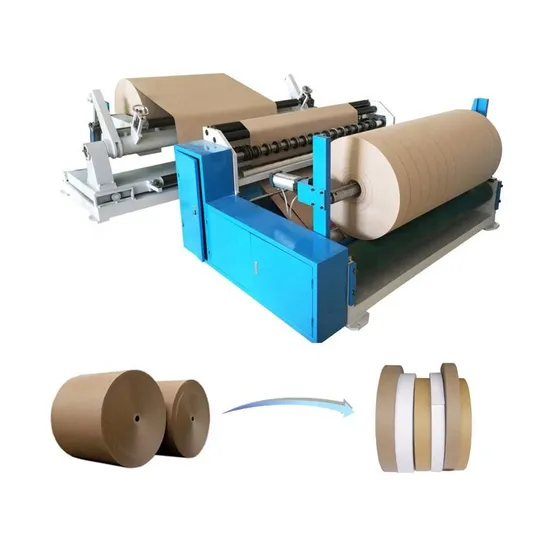

Jumbo Paper Reel Slitter Rewinder Machine Automatic High Speed

Product Description

Product Description Usage: CFFQ-200 Jumbo Paper Slitting Rewinding Machine is suitable for Kraft paper; Tea paperboard; Bobbin paper; Art paper etc.
Features:
1. Double blades (upper blades and down blades) slitting. Cutting edges are more smooth and neat.
2. Adopt shaftless material loading device which can bear 2000kgs weight.
3. Pneumatic loading and unloading system; material paper roll loading and finished rolls unloading to be automatically.

Technical Parameters

Technical Parameter		Control System
Material Paper	40-600gsm	Main Motor	15kw Wannan
Unwind Width	600-1600mm	Inverter	18.5KW Delta
Unwind Diameter	1400mm (standard)	Lifting Motor	1.1kw
Rewind Diamter	1400mm (standard)	Clamping Motor	1.5kw
Minimum Slitting Width	35mm	Execute Components	CHNT
Working Speed	1-180 meters/min	Signal Components	Hugong
Speed regulation	By Inverter	Pneumatic Components	Jingwei
Material Loading Device	Shaftless Device	Electric Components	CHNT
Loading Type	Automatically by Pneumatic (hydraulic can be customized)	Bearing	Haerbin
Rewinding Type	Air Inflation Shaft	Configuration
Unloading Type	Automatically by Pneumatic	Material Paper Fixing Cone	2 Pieces (76mm ID)
Power Supply	380V/3Phase/50Hz (can be customized)	Lifting Air Cylinder	2 Pieces
		Discharging Air Cylinder	2 Pieces
Size		Material Shafts Braking Device	2 Sets
Mainframe (two parts)	3000*1700*1100mm (Unwinding side)
		Blades	20 Sets (standard)
	3300*1200*1200mm (Rewinding side)	Operating Box	1 Set
		Curved Roll	Have
Weight	3200kgs	Meter Counter	Optional
Enclosed Spare Parts		Automatic Correcting Unit	Optional
Useful Tool	1 Set

Pictures
Shaftless Unloading System; Hydraulic Lifting System

Slitting& Rewinding Side. a. Multi Blades Slitting -- minimum slitting length is 35mm.
b.Rewinding part adopted with air inflatable shaft; finished rolls can be removed more easier.

Rewinding side has curved roller and finished rolls can be seperated automatically

Top and bottom slitting knives working together makes it more efficient.


Finished Products
Company Information
Wenzhou Chuangfeng Machinery Co., Ltd. as a professional machine manufacturer has 15+ years' experience on paper tube & core machines manufacturing and 7+ years on paper straw machines manufacturing.
Main products are below:
-- Paper straws making machine
-- Paper tube & core making machine
-- Paper tube & core cutting machine
-- Jumbo paper slitting rewinding machine
-- Related machines
Our machines have been exported to South Africa, Egypt, Morocco, Saudi Arabia, Israel, Indonesia, Malaysia, Singapore, Japan, Philippines, Thailand, Vietnam, Bangladesh, Poland, Spain, UK, Ukraine, Russia, Uzbekistan,USA, Mexico, Colombia, Ecuador etc.
Chuangfeng has its experienced R&D team; strict quality control system and excellent after-sales service, aims to provide customers with high quality machines at a fair price. We always believe that Quality & Service is the secret of success!


Certifications
Packaging & Shipping

---
