High Temperature Resistance Automatic Bobbin Transformer Coil Winding Machine for Filter Choke Coil

Product Description

Specificaton

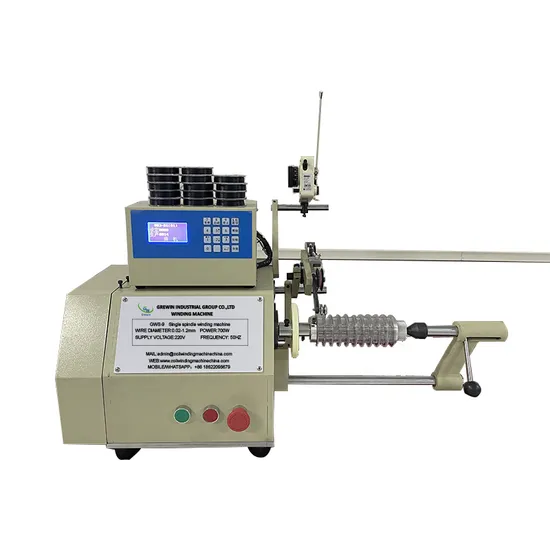

GWS-9 single spindle setpping motor automatic digital coil winding machine
Description of main components:

Spindle number	1	Spindle speed	High speed:0-3200rpm Low speed0-1600rpm
Wire diameter	0.02-1.2mm (suitable tensioner must be selected)	Tension system	according to the wire diameter
Max rotary diameter	300mm	Max wire spacing	180mm
Max wiring speed	33mm/ s	Spindle motor	550W three-phase AC motor +750W inverter
Spread motor	two-phase hybrid stepping motor, static torque 2N.M	Power supply	single-phase 220V±10% /50HZ
Machine power	700W	Machine size	64*54*63cm
Machine weight	65Kg	Multi-wire and wrap	Change some configurations to achieve multi-wire and wrap

FEATURES:
1.Adopts 32 bit ARM control chip and CPLD, the calculation speed
is faster, and the error of arranging line is reduced effectively.
2.Input and output all photoelectric isolation, stable work.
3.All Chinese liquid crystal display, easy to operate.
4.Intelligent input winding point and wire width.
5.Intelligent deceleration of line commutation, to ensure faster line
alignment and greater torque. Detailed Photos
Application
SCOPE OF APPLICATION:
Company Profile
Founded in 1993, Grewin has provided cost-effective, high-quality manufacturing solutions to a variety of industries. Whether it is the production of high-frequency transformers winding, low-frequency transformers winding, inductors winding and other coils winding , or other vital components, our winding machines have been relied upon by countless manufacturers around the world.
Our Team with Customers

Certifications

Packaging & Shipping

After Sales Service
PRE-SALE:
1. Strong and professional team of engineers, rich experience
2. Able to provide innovative solutions and quotes in one day
IN SALE:
1. Delivery time: 5-10 days(standard machine), 30 days(custom )
2. Free consulting service: in-depth understanding of customer needs
3. Provide professional advice: including the choice of parts type and consumable parts of the machine.
AFTER-SALE:
1.24 hours free remote service: video guide and telephone
2. Warranty:1 year after-sales service

---
