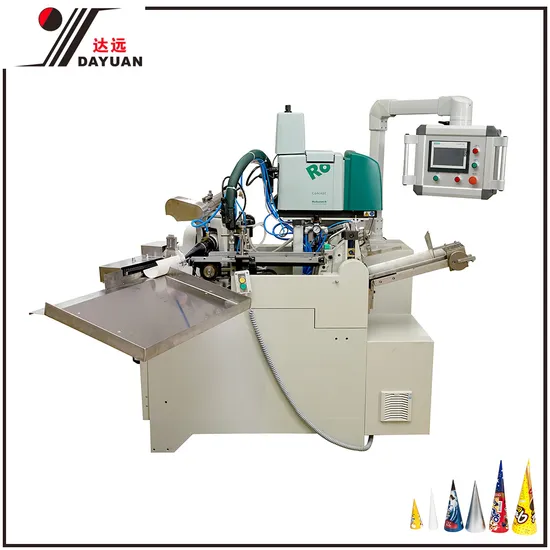

Ice Cream Cone Paper Cup Machine (DYK6-B)

Product Description

Product Description Machine Introduction:
Dayuan ice cream paper cone machine is designed according to European industrial standard. Initially developed in China, the products have achieved the CE certification and have been sold to over 70 countries in the world. With high quality and efficiency,it is an ideal choice for you to produce ice cream paper cone.

Specification Machine Specification

Item	Specification
Packaging Dimension	Ice Cream Paper Cone Forming Machine	Case 1	Case 2
	Case Size	1360*1160*1860mm	1560*850*850mm
	Net Weight	900 Kg	400 Kg
	Gross Weight	950 Kg	450 Kg
	Packaging material	By Strong Wooden Case
Capacity	250 pcs/min
Mould	1 Set
Voltage	380V/50HZ
The Total Power	9 KW
Wax Speed	250 pcs /min
Air Pressure	0.6MPa (Dry and Clean Compressor Air)
Dry Wax paper	≤100gsm
Material	Common Paper/Aluminum Foil Paper/Coated Paper etc
Material Paper Gram Weight	80 gsm to 150 gsm
Paper wastage rate	Lower than 20%
Container needed:	1*20GP and 1*40GP

Detailed Photos
Working Principle :
The sucking mouth will suck the paper, which has been printedpreviously, from the paper bracket to the transportation chain,and then transport it to the forming mould.
>>During the transportation, the paper will be spread with hot-melt glue.
>>>Theposition, length and quantity of thermal sol can be adjustedduring the production process without stopping the machine.
>>>After the for-mation, the paper spread with glue will be automatically blown to be transported to the collection machine.
>>>The piling and counting are automatic, and the paper will be carried out according to the prearranged piling numbers withoutstopping the machine.

Company Profile Dayuan Industrial Co. Ltd is a professional manufacturer of eco-friendly paper processing machines, following the enterprise development mission" Create Value for Customers".Founded in 1995, the company is located at Zhongshan, Guangdong, the hometown of Sun Yat Sen.
With more than 20'years exploration and development, the sales volume of four series self-innovative products(Ice Cream Paper Cone Machine, Carton Erecting Machine,Paper Cone Cup Machine and Punching Machine) rank first in the domestic market, the products have also exported to more than 70 countries and are favorably reviewed by domestic and overseas customers.
Shipping and packing: By sea, or as your requirement.

FAQ
Q: Can I have sample before order?
A: Yes for sure ,sample for free ,express charge on your account .
Q: Can you make the customized paper cone ?
A: Yes , please show us your sample first .
Q: What time for delivery ?
A: Machine about 45days after get your down payment , paper cone as the quantity .
Q: Engineer oversea service ?
A: yes ,we can send engineer help you install ,training worker until to the machine normal running.
Q: What payment term ?
A: T/T 30% down payment ,balance before delivery ,or LC at sight .

---
