Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000
Engine Power/Rpm
33.7 Kw/2100 Rpm
Pump
Variable Capacity Pump
Max. Torque
193.2-210.6 N.M/126±100rpm
Wheel Travelling Speed
25 Km/H
Track Travelling Speed
2.3km/H
Hydraulic System
Rexroth From Germany
Max. Digging Radius
6880mm
Max. Digging Radius (on Ground)
6735mm
Max. Digging Depth
3772mm
Max. Dumping Height
5220mm
Max. Vertical Digging Depth
3425mm
Bucket Digging Force (Kn)
56kn
Bucket Arm Digging Force (Kn)
36kn
Transport Package
Put in Container
Production Capacity
1000/Year
Product Description

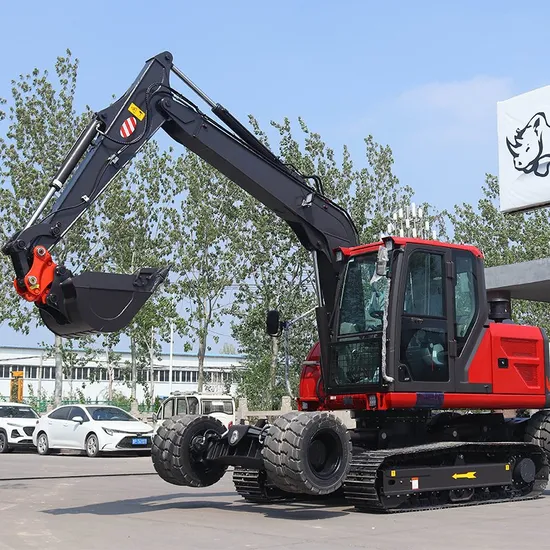

Wheel Excavator bagger with grapper 1.Detail information for X9
a brand new excavator invented by our company,
it is with both tires and track, easy to switch.
walking spead is 25km/h, transportation cost will be highly reduced.
Annual sales about 200 sets,
with very stable performance,good quality
Best factory price!
Specification:
| Total length (Boom3.6m+Bucket arm 2m) | 6570 mm |
| Total height (Boom3.6m+Bucket arm 2m) | 2982 mm |
| Counter weight turning radius | 1836 mm |
| Engine hood height | 2104 mm |
| Counter weight ground clearance | 1120 mm |
| Upper structure width | 2000 mm |
| Cabin height (wheels up) | 2982 mm |
| Tire width | 2120 mm |
| Ground clearance | 270 mm |
| Wheels up wheel gauge | 3400 mm |
| Distance of swing center to rear wheel (wheels up) | 1682 mm |
| Wheels down wheel gauge | 3560 mm |
| Distance of swing center to rear wheel (wheels down) | 1767 mm |
| Rear wheel ground clearance(wheel up) | 300 mm |
| Tracks ground clearance(wheel down) | 330 mm |
| Total height (wheels down) | 3190 mm |
| Track wheel track | 2050 mm |
| Track width | 400 mm |
| Track outer width | 2160 mm |
| Total weight | 8770kg |
| Bucket capacity | 0.3m3 |
| Model | YANMAR 4TNV94L-BNBKC |
| Displacement | 3.054L |
| Engine power/rpm | 33.7 kw/2100 rpm |
| Max. torque | 193.2-210.6 N.m/126±100rpm |
| Wheel travelling speed | 25 km/h |
| Track travelling speed | 2.3km/h |
| Swing speed | 9rpm |
| Max. grade ability | 30° |
| Hydraulic system | Rexroth from Germany |
| Pump | variable capacity pump |
| Pressure | 25 Mpa |
| Displacement | 132 L/min |
| Capacity of hydraulic tank | 175 L |
| Capacity of fuel tank | 150 L |
| Engine oil capacity | 12 L |
| Max. digging radius | 6880mm |
| Max. digging radius (on ground) | 6735mm |
| Max. digging depth | 3772mm |
| Max. digging depth | 7130mm |
| Max. dumping height | 5220mm |
| Min. turning radius | 2617mm |
| Max. vertical digging depth | 3425mm |
| Bucket digging force (KN) | 56KN |
| Bucket arm digging force (KN) | 36KN |
About us:
Our team:
Related product:
FAQ
1: Are you factory or trading company?
A: Here we are factory since the year 1995, brand is XINIU/Rhinoceros, focus in producing small size excavators.
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO.
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs .
