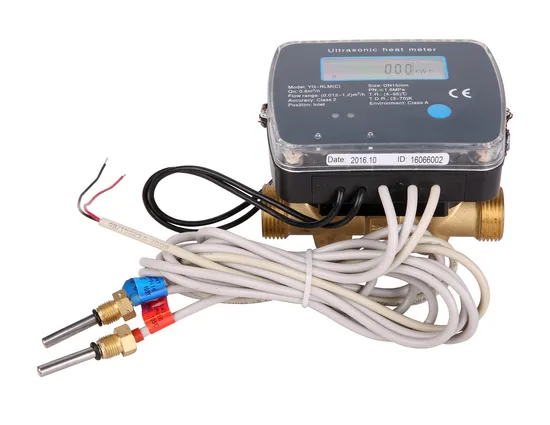

Ultrasonic M-Bus or RS-485 Heat Meter

Product Description

APPLICATION
YG-RLM(C) series heat meters can be used to calculate heat or cold in apartment. This series is suitable for temperature range from 4 to 95ºC.
PRINCIPLE
Water will release heat if temperature decreases. Released heat is ratable with temperature difference and flowing volume through meter.

Flowing volume signal comes from flow sensor,temperature difference comes from temperature sensor pair,as result the calculator will calculate heat according to the flowing volume and temperature difference.
MAIN TECHNICAL DATA

Model	Size	Max flow	Pemanent flow	Minmum flow	Flow sensor interface size		Flow sensor interface size			Minmum height of meter body	Maximum height of meter body	Meter weight
	DN(mm)	qs(m3/h)	qp(m3/h)	qi(m3/h)	Length with comector	Connecting thread	Length with connector	thread length	connector theread
					L(mm)	D(inch)	H(mm)	L2(mm)	D1(inch)	H(mm)	H1(mm)	Kg
RLM(C)-15	15	3	1.5	0.03	110	G3/4B	205	10	R1/2	100	150	0.5
RLM(C)-20	20	5	2.5	0.05	130	G1B	235	16	R3/4	100	150	0.7
RLM(C)-25	25	7	3.5	0.07	160	G11/4B	280	18	R1	110	160	1.5
RLM(C)-32	32	12	6.0	0.12	180	G11/2B	305	20	R11/4	130	180	1.8
RLM(C)-40	40	20	10	0.2	200	G2B	328	22	R11/2	140	190	2.5

Pressure loss	Class 2
Max working pressure	<2.5Mpa
Working pressure	1.6Mpa
Hot (cold) cinsumption calculation	Starting for 0.25k
Temperature range	(4~95)ºC
Temperature difference range	(3~60)ºC
Temperature temperature	0.01ºC
Environment temperarure	A Type +5 ~ +55ºC
Battery life	10 Year (Lithium Battery)
Installation	Horzontal or vertical installation
Hot(cold)carrier	H2O
Temperature sensor	Pt1000 /Platinum resistance
Dispaly digits	8 digits

Company Profile:
We are a high - tech factory that independently develops and produces water meter, heat meter and intelligent water meter, with complete system and high quality service.
Our products are sold all over the world and our years of sales experience have enabled us to acquire the trademark and technical talent of Yonggang company.
In addition, we also supply brass accessories and have world-class machining centers, including CNC machine tools, testing machines and other processing equipment.
Choose us and offer you a satisfactory solution.
Welcome to view the following pictures of our company
Please feel free to contact me---Kens

---
