Product Details
Product Description
Product Description
Frequency
13.56MHZ
Interface
USB
Read range
0-100mm
Support card
MF one S50,S70 and QR code 1D code

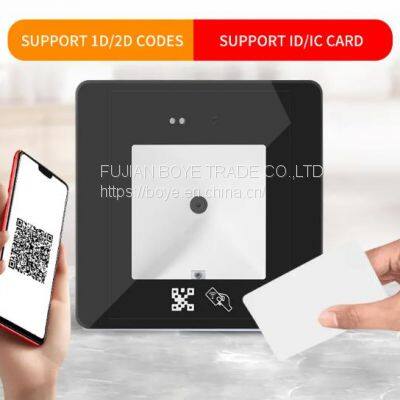

Power SupplyR35 QR Code Reader
R35 QR Code + RFID Card Reader is a new generation of smart card reader developed by our company.
It can be connected to any controller that supports wigan input, and is suitable for various application scenarios.
At present, it is widely used in business office building visitor entry management, scenic area tourism personnel management,
community visitor entry and exit management, administrative hall access control management, supporting gate, access control, passenger plane, smart home, etc.
1. USB card number 8H10D USB output in data format
2. Serial port -485 outputs card number, such as 10-bit card number 1234567890. The card reader outputs 31 32 33 34 35 36 37 38 39 30 0D 0A
Technical Parameter
Note:
(1) Do not connect the power supply to SPK+ and SPK- port;
(2) Wigan output, scan the QR code must conform to 0-9/ a-f combination of 16 prohibit card number principle, in line with the card number principle of the QR code, the controller can receive card number data; The controller cannot receive the card number data if the qr code does not conform to the card number principle.
Wigan output, the default scan two-dimensional code identified as the output of the decimal system.
8-12V
Size
86mm*86mm*42mm
Weight
150G
Operating humidity
10%~90%
Operating System
WindowsXP/7/8/10),Linux
Reading speed
<200ms
>>
