Double Deck Roll Forming Machine for Metal Ribtype Corrugated Roof Sheet with 1220mm Coil Width

Product Description

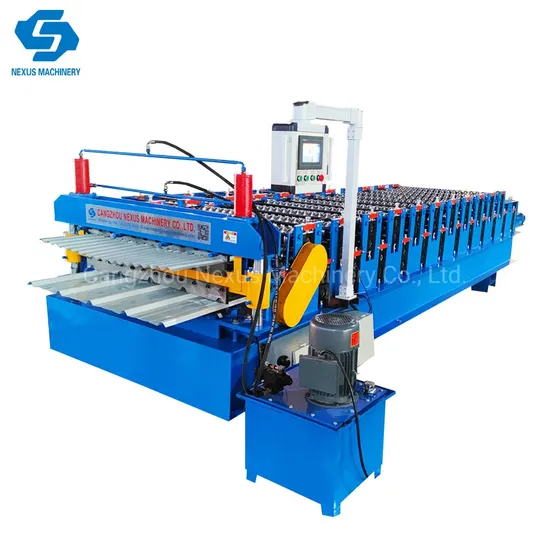

Double Deck Roll Forming Machine for Metal Ribtype Corrugated Roof Sheet with 1220mm Coil Width
Double Deck Roll Forming Machine for Metal Ribtype Corrugated Roof Sheet with 1220mm Coil Width is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 1220mm, thickness range is from 0.3mm to 0.8mm. We adopt guide pin type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.

1. Processing flow diagram of machine:
Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table

2. Profile Drawings for Reference:
3. Technical parameters:

Manual decoiler
Capacity	5ton
Feeding width	MAX 1300mm
Expanding range	460-520mm

Double Deck Roll Forming Machine for Metal Ribtype Corrugated Roof Sheet with 1220mm Coil Width
Main motor power	5.5 kw
Drive	1'' single chain
Type:	Wall board
Main shaft dia	¢70mm
material	45# forge steel and quenched
Roller material	45# high grade forge steel ,chrome coated 0.05mm
Roll station	11 groups for corrugated sheet and 13 groups for ribtype sheet
Raw material	0.3-0.8mm
Coil width	1000mm
Working speed	10m--15m/min(Exclude cutting time)
Length Tolerance	±1.5mm
Weight of machine	About 6 ton
Size of machine	About 6500×1800×1500mm L x W x H
Color of machine	Yellow and Blue
Coder	Omron, made in Japan
Control	PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating panel	touching screen
Other electrical element	Schneider
Cutting	Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power	3KW
Blade material	Cr12mov,quenched 58°-62°
Working pressure	16mpa
Cutting tolerance	+/- 1.0mm

4. Equipment list :

No.	Product Name	QTY
1	5T Manual decoiler	2
2	Double Deck Roll Forming Machine for Metal Ribtype Corrugated Roof Sheet with 1220mm Coil Width (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		5

5. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
6. Photos of Double Deck Roll Forming Machine for Metal Ribtype Corrugated Roof Sheet with 1220mm Coil Width for Reference:
7. Why Choose US?
1. More than 10 years experiences in manufacturing&exporting roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.

---
