Basic Info.
Type
Tool Grinding Machine
Grinding Range
ф1-ф6mm
Machine Dimension
48*30*58cm
Package Dimension
62*34*33cm
Transport Package
Plywood Case
Specification
Weight: 30KG
Production Capacity
200units/Month
Product Description
Product description:
Technical parameter :
1.FUCTION:

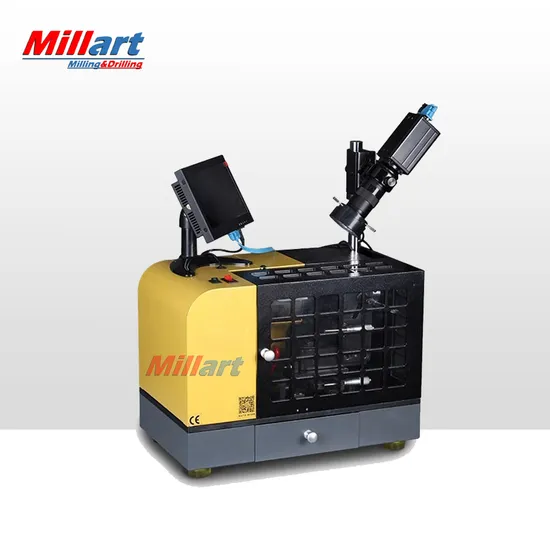

MR-6A drill bit grinder,with the camera to set the drill grinding and do the measure after grinding. It can grind drill bit with flat relief angle and various point thinning. Grinding with travel block control ensures the bit high accuracy,symmetry,and not only the penetrating power,but also longer bit life.
2.PERFORMANCE :
Grinding is accurate and rapid,easy to operate,with no skill requirement to grind.Saving cost and improving the efficient.
The electrically controlled and powerful DC motor;stable frequency,strong horsepower and long service life.
| Model | MR-6A |
| Grinding range | ф1-ф6mm |
| Point angle | 90°~150° |
| Power | 220V/250W |
| Standard equipment grinding wheel | CBN |
| Standard equipment chuck 11pcs | ф1,ф1.5,ф2,ф2.5,ф3,ф3.5,ф4,ф4.5,ф5,ф5.5,ф6 |
| Speed | 4400rpm |
| Machine Dimension | 48×30×58cm |
| Package Dimension | 62×34×33cm |
| Weight | 30kg |
Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.
Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
>>
