China 5 Axis Vertical CNC Machining Center Vmc850 with Fanuc Controller Price

Product Description

Product Description

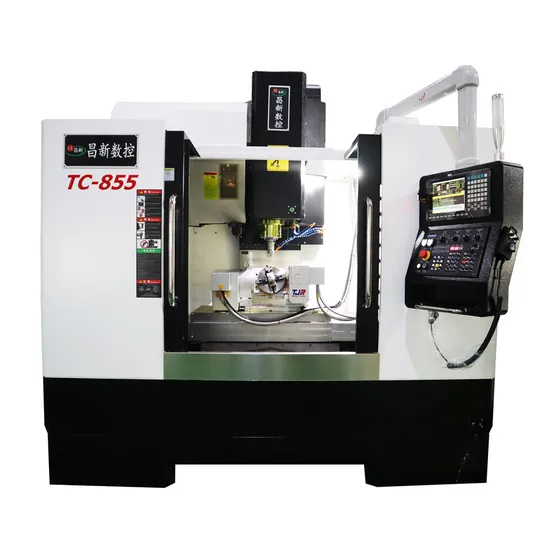

3 Axis 4 Axis 5 Axis Vertical CNC Milling Machine Center for Metal Heavy Cutting Tc-855 Vmc855
VMC855 is designed for machining complicated mold profile, automotive parts, and housing parts. It has distinguished advantage in machining mold, especially the small size mold. It has big torque output at low speed range, which is suitable for high strength steel and high temperature alloy steel which are difficult for machining.
Suitable to machine large machinery parts, automotive part, mold etc.
With Taiwan high speed spindle to 10000rpm;
High accuracy; High speed; High rigidity; Low noise .
Features At A Glance
VMC855 advantages:

1: The spindle has good rigidity, and adopts a 1:1 belt with a high torque output of 11KW.

2: The slide block of the Y/Z axis guide rail is enlarged to maintain better cutting rigidity and carry a larger load during heavy cutting.

3: The entire machine tool castings are tempered and naturally aged to better eliminate internal pressure and achieve better stability.
Detailed Photos
Taiwan Brand Spindle 10000rpm Taiwan Brand Tool Magazine 24 tools Work Table 1000*550mm
Taiwan TJR 4th Axis Rotary Table with Tailstock Taiwan TJR 4th and 5th Axis Rotary Table Quality Control
Body parallelism and perpendicularity test:
To insure the accuracy of the machine, we will do the parallelism and perpendicularity testing . All joint surface of the machine body are manually scraped to ensure geometric accuracy and rigidity.
Reishaw laser interferometer inspection:
Detecting the screw pitch error and the straightness of the linear guide rail in the XX and YY directions. Meanwhile, test the actual positioning accuracy and repeat positioning accuracy of the machine.
Running test:
In order to ensure quality , the machine will go through other quality control procedures, such as spindle vibration , noise inspection, 72-hour full function running test.
Product Parameters

TC-855 heavy-duty roller three-linear guides machining center parameters:
1	Machine Body		Casting three linear guide ways high-strength body (X35mm, Y-axis 45mm, Z-axis 45mm six-slide linear roller rail)
2	Spindle		Taiwan WLT / TD / VOLIS 10000 rpm synchronous belt spindle
3	System		Taiwan Syntec/Japan Fanuc/Japan Mitsubishi/ Germany Siemens
4	Spindle Motor		The servo motor that comes with the system 11KW
5	Three-axis motor		The system comes with servo motors X, Y, Z-3KW
6	Automatic lubrication system		pressurized volumetric automatic oiler, automatic balance distribution of lubricants (joint venture Baoteng brand oiler)
7	Machine Head balance system		Servo screw direct drive
8	High pressure chip system		high pressure motor, high pressure flushing (joint venture Sinaer brand water pump)
9	Screw		original Taiwan imported Hiwin /PMI screw
10	Spindle cooling		plus independent oil cooling system (joint venture Ruike brand oil cooler)
11	Tool Magazine		Taiwan OKADA arm type with 24 BT40 tools capacity
12	Controller		Standard Syntec/Fanuc/Mitsubishi/Siemens color display
13	X, Y, Z bearings		standard German brand or Japan NSK
14	Three-axis roller guide		standard Taiwan Taiwan Hiwin / PMI
15	Spindle Knife cylinder		Standard Taiwan North Kui / Hao Cheng
16	Couplings		Standard Germany BK3 SW*J
17	Wind system combined with solenoid valve (triple)		standard joint venture Ogreut
18	The main electrical accessories		standard Germany Brand, Merlin Gerin
19	Other air pressure components		standard joint venture Ogreut
20	Circuit breakers, relays		standard Germany brand, Merlin Gerin
21	Electric box air fan		standard joint venture FuRuize
22	Transformer		standard joint venture AoHengda
23	Work LED lamp		standard Taiwan Ou Si
24	Hand control electronic hand wheel		standard Taiwan NEMICON
25	Three-axis telescopic shield		standard joint venture Zhenfei
26	Full cover		standard joint venture Jiancheng/Hongwang
27	Technical advantages		1. High-speed and stable large body 2. Superb and advanced shovel assembly technology 3. Precise and advanced laser detector adjustment accuracy 4. Strict and demanding seismic test 5. High-quality elite technical team 6. Perfect Quality control and after-sales service system
Content		Unit	Parameters	Remarks
X/Y/Z-Axis Travel		mm	800/550/550mm
Distance from Spindle Nose to Table		mm	120-720mm
Distance from Spindle Center to Column Guide Rail		mm	590mm
Working Table Size		mm	1000×550mm
Table Max Load		kg	800kg
T Slot		mm	5pcs×18T×90mm
Spindle Speed		r/pm	10000rpm
Spindle Motor Power		kw	11kw
X/Y/Z-Axis Motor Power		kw	3.0/3.0/3.0kw
X, Y, Z three axis		mm	X axis -35mm, Y axis -45mm, Z axis -45mm roller linear guide	Z axis -six slider
Rapid Traverse(X/Y/Z)		mm/min	36000/36000/36000mm
Cutting Speed		mm/min	0-15000mm
Spindle Taper Diameter		/	BT40
Positioning Accuracy		mm	±0.005mm/300mm
Repeat Positioning Accuracy		mm	±0.003mm/300mm
Total Electricity Demand		KVA	19kw
Machine Size		mm	2750×2750×2850mm
Machine Weight		T	5.5T
Accessories		1.Tool box (1 set) 2.Tool Holder(2 pcs) 3.6 inch vise (1pcs)and Lock knife seat (1 set) 4.Machine operating manual 5.Operation and programming manual 6.Servo Motor and Controller Manual

Company Profile
FAQ
Q1: How can I choose the most suitable machines ?
A1: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .Q2: What's your main products of your company?A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and soon.Q3: What's the Payment Terms ?A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.Q4: What's the MOQ?A4: 1setQ5: What's the warranty?A5: One year.

---
